SRC1205U - NPN Silicon Transistor

Name: SRC1205U
SKU: SRC1205U-462069

AUK

The SRC1205U by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRC1205U
Manufacturer	AUK
File Size	119.75 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205U_AUKcorp.pdf

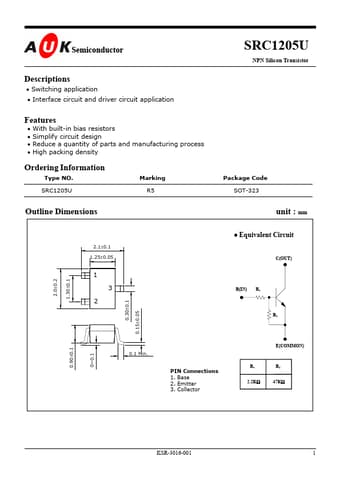

Additional preview pages of the SRC1205U datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205U Marking R5 Package Code SOT-323 Outline Dimensions unit : mm.
Equivalent Circuit 2.1±0.1 1.25±0.05 C(OUT) 1 1.30±0.1 2.0±0.2 3 0.30±0.1 B(IN) R1 2 0.15±0.05 R2 0.90±0.1 E(COMMON) 0~0.1 0.1 Min. R1 2.2KΩ R2 47KΩ PIN Connections 1. Base 2. Emitter 3. Collector KSR-3016-00.
