SRC1205E - NPN Silicon Transistor

Name: SRC1205E
SKU: SRC1205E-462064

AUK

The SRC1205E by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRC1205E
Manufacturer	AUK
File Size	56.51 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205E_AUKcorp.pdf

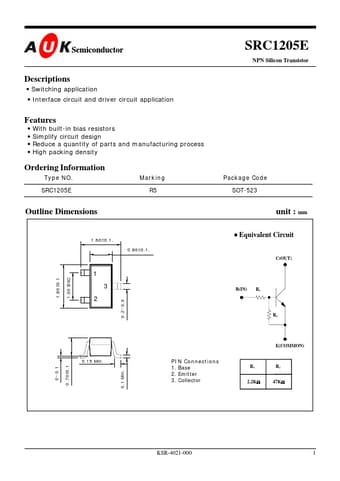

Additional preview pages of the SRC1205E datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205E Marking R5 Package Code SOT-523 Outline Dimensions 1.60±0.1. 0.80±0.1. unit : mm.
Equivalent Circuit C(OUT) 1.00 BSC 1 3 0.2~0.3 B(IN) R1 1.60±0.1 2 R2 E(COMMON) 0.15 Min. 0.70±0.1 0~0.1 0.1 Min. PIN Connections 1. Base 2. Emitter 3. Collector R1 2.2KΩ R2 47KΩ KSR-4021-0.
