SRC1205M - NPN Silicon Transistor

Name: SRC1205M
SKU: SRC1205M-462066

AUK

The SRC1205M by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRC1205M
Manufacturer	AUK
File Size	56.13 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205M_AUKcorp.pdf
Additional preview pages of the SRC1205M datasheet.

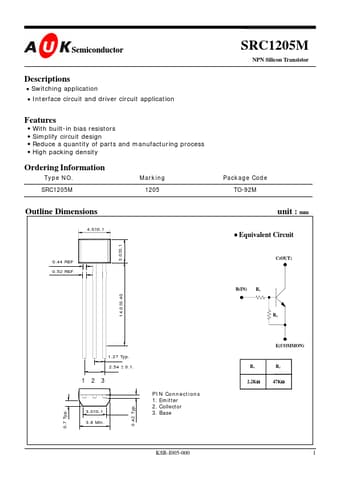

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205M Marking 1205 Package Code TO-92M Outline Dimensions 4.0±0.1 unit : mm.
Equivalent Circuit 3.0±0.1 0.44 REF 0.52 REF C(OUT) B(IN) 14.0±0.40 14.0±0.40 R1 R2 E(COMMON) 1.27 Typ. 2.54 ± 0.1. R1 2.2KΩ R2 47KΩ 1 2 3 PIN Connections 1. Emitter 2. Collector 3. Base 0.7 Typ. 3.0±.
