SRC0524P - Ultra Low Capacitance ESD Protection Array

The SRC0524P by SEMITECH is a Ultra Low Capacitance ESD Protection Array. Below is the official datasheet preview.

📥 Download Datasheet

SRC0524P Ultra Low Capacitance ESD Protection Array by SEMITECH - Datasheet Preview — Official preview page of the **SRC0524P** Ultra Low Capacitance ESD Protection Array datasheet (SEMITECH).

Datasheet Details

Part number	SRC0524P
Manufacturer	SEMITECH
File Size	127.82 KB
Description	Ultra Low Capacitance ESD Protection Array
Datasheet	SRC0524P-SEMITECH.pdf

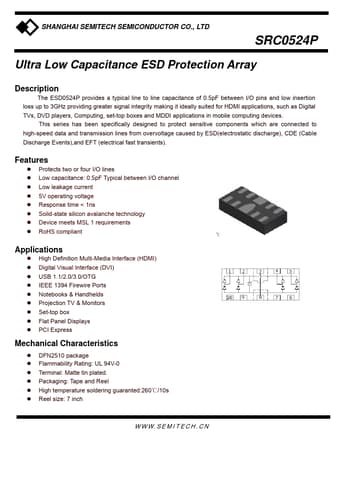

Additional preview pages of the SRC0524P datasheet.

SRC0524P Product details

Description

The ESD0524P provides a typical line to line capacitance of 0.5pF between I/O pins and low insertion loss up to 3GHz providing greater signal integrity making it ideally suited for HDMI applications, such as Digital TVs, DVD players, Computing, set-top boxes and MDDI applications in mobile computing devices.

Features

Protects two or four I/O lines.
Low capacitance: 0.5pF Typical between I/O channel.
Low leakage current.
5V operating voltage.
Response time < 1ns.
Solid-state silicon avalanche technology.
Device meets MSL 1 requirements.
RoHS compliant.
