SRC1205EF - NPN Silicon Transistor

Name: SRC1205EF
SKU: SRC1205EF-462065

AUK

The SRC1205EF by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRC1205EF
Manufacturer	AUK
File Size	56.19 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205EF_AUKcorp.pdf
Additional preview pages of the SRC1205EF datasheet.

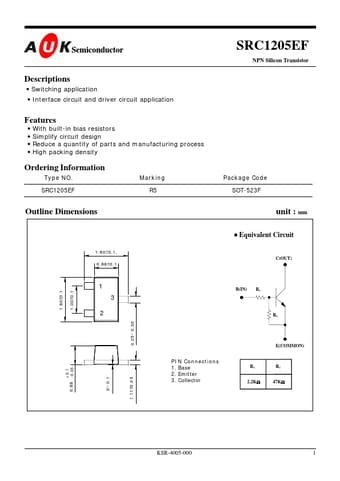

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205EF Marking R5 Package Code SOT-523F Outline Dimensions unit : mm.
Equivalent Circuit 1.60±0.1. C(OUT) 0.88±0.1. 1 1.60±0.1 1.00±0.1 B(IN) R1 3 2 0.25~0.30 R2 E(COMMON) +0.1 0.68 -0.05 0~0.1 1.11±0.05 PIN Connections 1. Base 2. Emitter 3. Collector R1 2.2KΩ R2 47KΩ KSR-40.
