SRC1205SF - NPN Silicon Transistor

Name: SRC1205SF
SKU: SRC1205SF-462068

AUK

The SRC1205SF by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRC1205SF
Manufacturer	AUK
File Size	56.05 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205SF_AUKcorp.pdf
Additional preview pages of the SRC1205SF datasheet.

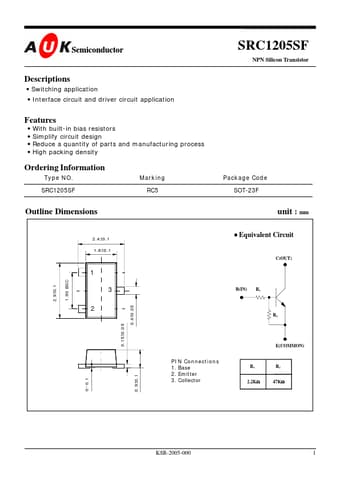

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205SF Marking RC5 Package Code SOT-23F Outline Dimensions 2.4±0.1 1.6±0.1 unit : mm.
Equivalent Circuit C(OUT) 1 2.9±0.1 1.90 BSC 3 0.4±0.05 B(IN) R1 2 0.15±0.05 R2 E(COMMON) 0.9±0.1 0~0.1 PIN Connections 1. Base 2. Emitter 3. Collector R1 2.2KΩ R2 47KΩ KSR-2005-000 1 SR.
