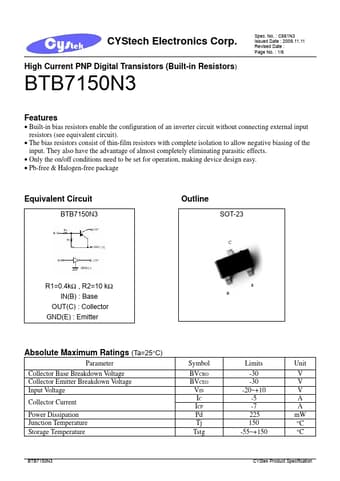

CYStech Electronics Corp.
High Current PNP Digital Transistors (Built-in Resistors)
BTB7150N3
Spec. No. : C661N3 Issued Date : 2009.11.11 Revised Date : Page No. : 1/6
Features
• Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
• The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
• Only the on/off conditions need to be set for operation, making device design easy. • Pb-free & Halogen-free package
Equivalent Circuit
BTB7150N3
Outline
SOT-23
R1=0.
