XCL100 - Inductor Built-in Step-up micro DC/DC Converter

This page provides the datasheet information for the XCL100, a member of the XCL101 Inductor Built-in Step-up micro DC/DC Converter family.

Description

The XCL100/XCL101 series is a synchronous step-up micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

A stable step-up power supply is configured using only two capacitors connected externally.

Features

  • Voltage Range Output Voltage Range Output Current Supply Current Control Method PFM Switching Current Functions Output Capacitor Operating Ambient Temperature Package Environmentally Friendly : Operating hold voltage 0.7V~5.5V Start-up voltage 0.9V~5.5V : XCL100 3.0V ~ 5.0V (±2.0%) XCL101 1.8V ~ 5.0V (±2.0%) : 80mA＠VOUT=3.3V, VBAT=1.8V : 6.3μA (VBAT=VOUT+0.5V) : PFM Control : 350mA : Load Disconnection or Bypass Mode CL Discharge : Ceramic Capacitor Compatible : -40ºC ~ 85ºC : C.

📥 Download Datasheet

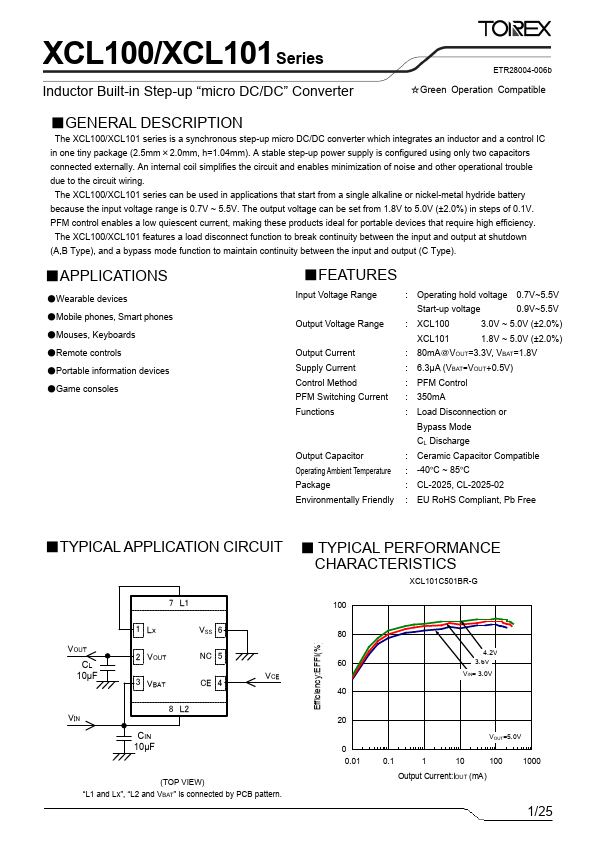

Datasheet preview – XCL100

Datasheet Details

Part number XCL100
Manufacturer Torex
File Size 1.85 MB
Description Inductor Built-in Step-up micro DC/DC Converter
Datasheet download datasheet XCL100 Datasheet
Additional preview pages of the XCL100 datasheet.

📁 Similar Datasheet

  • XCL201 - Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL202 - Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL205 - Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL206 - Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL207 - Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL208 - 400mA Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL209 - 400mA Inductor Built-in Step-Down micro DC/DC Converters (Torex Semiconductor)
  • XCL210 - 50mA/200mA Inductor Built-in Step-Down DC/DC Converters (Torex Semiconductor)
  • XCL213 - 1.5A Inductor Built-in Step-Down Converters (Torex Semiconductor)
  • XCL214 - 1.5A Inductor Built-in Step-Down Converters (Torex Semiconductor)
Other Datasheets by Torex
  • XCL101 - Inductor Built-in Step-up micro DC/DC Converter
  • XCL102 - Inductor Built-in Step-up micro DC/DC Converter
  • XCL103 - Inductor Built-in Step-up micro DC/DC Converter
  • XCL104 - Step-up DC/DC Converters
  • XCL105 - Step-up DC/DC Converters
  • XCL211 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters
  • XCL212 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters
  • XCL223 - Step-Down micro DC/DC Converter

Full PDF Text Transcription

Click to expand full text
XCL100/XCL101 Series Inductor Built-in Step-up “micro DC/DC” Converter ETR28004-006a ☆Green Operation Compatible ■GENERAL DESCRIPTION The XCL100/XCL101 series is a synchronous step-up micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm). A stable step-up power supply is configured using only two capacitors connected externally. An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring. The XCL100/XCL101 series can be used in applications that start from a single alkaline or nickel-metal hydride battery because the input voltage range is 0.7V ~ 5.5V. The output voltage can be set from 1.8V to 5.0V (±2.0%) in steps of 0.1V.
