XCL210 - 50mA/200mA Inductor Built-in Step-Down DC/DC Converters

Description

The XCL210 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm).

An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring.

Features

  • oltage : 2.0V ~ 6.0V Output Voltage : 1.0V ~ 4.0V (±2.0%) Control Methods : PFM control Output Current : 200mA (Type A/C) 50mA (Type B/D) Supply Current : 0.5μA High Efficiency Function : 93% (VIN=3.6V,VOUT=3.0V/100μA) : UVLO Short Circuit Protection Capacitor CL Discharge(Type C/D) : Low ESR Ceramic Capacitor Operating Ambient Temperature : -40℃ ~ 85℃ Packages : CL-2025-02 Environmentally Friendly : EU RoHS Compliant, Pb Free.

📥 Download Datasheet

Datasheet preview – XCL210

Datasheet Details

Part number XCL210
Manufacturer Torex Semiconductor
File Size 1.28 MB
Description 50mA/200mA Inductor Built-in Step-Down DC/DC Converters
Datasheet download datasheet XCL210 Datasheet
Additional preview pages of the XCL210 datasheet.

📁 Similar Datasheet

  • XCL211 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters (Torex)
  • XCL212 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters (Torex)
  • XCL223 - Step-Down micro DC/DC Converter (Torex)
  • XCL224 - Step-Down micro DC/DC Converter (Torex)
  • XCL225 - 0.5A Inductor Built-in Step-down micro DC/DC Converter (Torex)
  • XCL226 - 0.5A Inductor Built-in Step-down micro DC/DC Converter (Torex)
  • XCL230 - Step-down micro DC/DC Converter (Torex)
  • XCL231 - Step-down micro DC/DC Converter (Torex)
  • XCL232 - Inductor Built-in Step-Down DC/DC Converter (Torex)
  • XCL233 - Inductor Built-in Step-Down DC/DC Converter (Torex)
Other Datasheets by Torex Semiconductor
  • XCL213 - 1.5A Inductor Built-in Step-Down Converters
  • XCL214 - 1.5A Inductor Built-in Step-Down Converters
  • XCL219 - 1.0A Inductor Built-in Step-Down micro DC/DC Converter
  • XCL201 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL202 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL205 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL206 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL207 - Inductor Built-in Step-Down micro DC/DC Converters

Full PDF Text Transcription

Click to expand full text

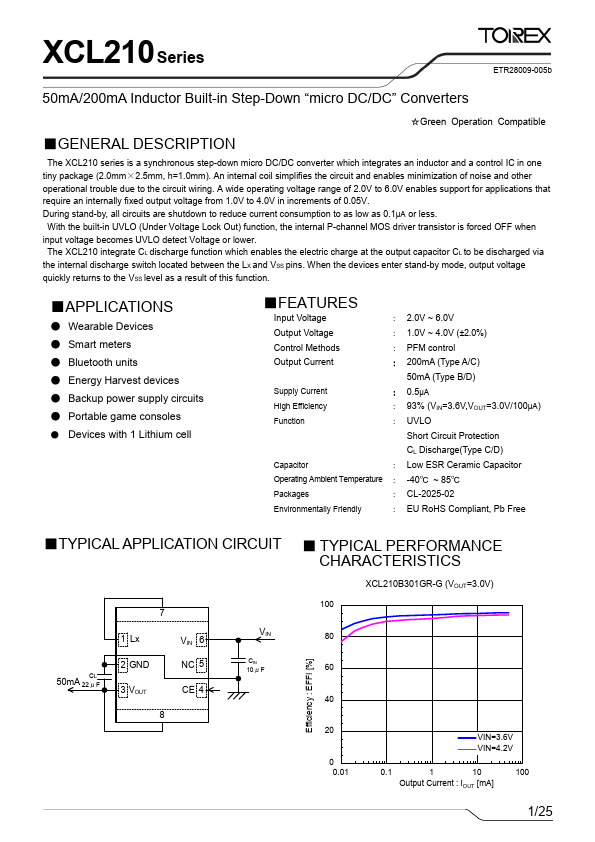

XCL210 Series ETR28009-005a 50mA/200mA Inductor Built-in Step-Down “micro DC/DC” Converters ☆Green Operation Compatible ■GENERAL DESCRIPTION The XCL210 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm). An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring. A wide operating voltage range of 2.0V to 6.0V enables support for applications that require an internally fixed output voltage from 1.0V to 4.0V in increments of 0.05V. During stand-by, all circuits are shutdown to reduce current consumption to as low as 0.1μA or less.
