XCL207 - Inductor Built-in Step-Down micro DC/DC Converters

This page provides the datasheet information for the XCL207, a member of the XCL205 Inductor Built-in Step-Down micro DC/DC Converters family.

Description

The XCL205/XCL206/XCL207 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

A stable power supply with an output current of 600mA is configured using only two capacitors connected externally.

Features

  • ll Input Voltage Output Voltage High Efficiency Output Current Oscillation Frequency Maximum Duty Cycle Capacitor CE Function Protection Circuits Control Methods Operating Ambient Temperature Environmentally Friendly : 2.5mm×2.0mm, h=1.0mm : 2.0V ~ 6.0V(A/B/C Type) 1.8V ~ 6.0V(G/F Type) : 0.8V ~ 4.0V (±2.0%) : 90% (VIN=4.2V, VOUT=3.3V) : 600mA : 3.0MHz (±15%) : 100% : Low ESR Ceramic : Active High Soft-Start Circuit Built-In CL High Speed Auto Discharge : Current Limiter Circuit Built-In (Const.

📥 Download Datasheet

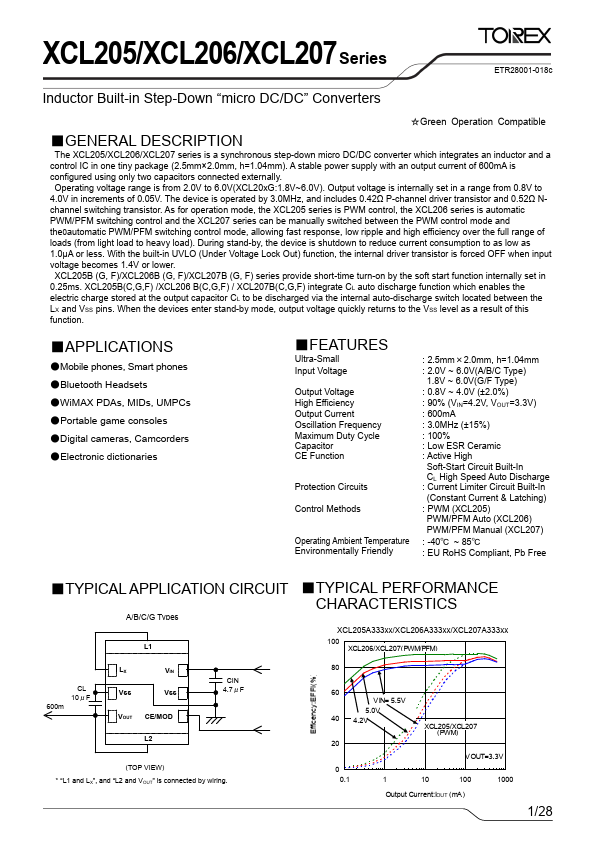

Datasheet preview – XCL207

Datasheet Details

Part number XCL207
Manufacturer Torex Semiconductor
File Size 2.26 MB
Description Inductor Built-in Step-Down micro DC/DC Converters
Datasheet download datasheet XCL207 Datasheet
Additional preview pages of the XCL207 datasheet.

📁 Similar Datasheet

  • XCL211 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters (Torex)
  • XCL212 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters (Torex)
  • XCL223 - Step-Down micro DC/DC Converter (Torex)
  • XCL224 - Step-Down micro DC/DC Converter (Torex)
  • XCL225 - 0.5A Inductor Built-in Step-down micro DC/DC Converter (Torex)
  • XCL226 - 0.5A Inductor Built-in Step-down micro DC/DC Converter (Torex)
  • XCL230 - Step-down micro DC/DC Converter (Torex)
  • XCL231 - Step-down micro DC/DC Converter (Torex)
  • XCL232 - Inductor Built-in Step-Down DC/DC Converter (Torex)
  • XCL233 - Inductor Built-in Step-Down DC/DC Converter (Torex)
Other Datasheets by Torex Semiconductor
  • XCL201 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL202 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL205 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL206 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL208 - 400mA Inductor Built-in Step-Down micro DC/DC Converters
  • XCL209 - 400mA Inductor Built-in Step-Down micro DC/DC Converters
  • XCL210 - 50mA/200mA Inductor Built-in Step-Down DC/DC Converters
  • XCL213 - 1.5A Inductor Built-in Step-Down Converters

Full PDF Text Transcription

Click to expand full text
XCL205/XCL206/XCL207 Series ETR28001-018a Inductor Built-in Step-Down “micro DC/DC” Converters ☆Green Operation Compatible ■GENERAL DESCRIPTION The XCL205/XCL206/XCL207 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm). A stable power supply with an output current of 600mA is configured using only two capacitors connected externally. Operating voltage range is from 2.0V to 6.0V(XCL20xG:1.8V~6.0V). Output voltage is internally set in a range from 0.8V to 4.0V in increments of 0.05V. The device is operated by 3.0MHz, and includes 0.42Ω P-channel driver transistor and 0.52Ω Nchannel switching transistor.
