XCL202 - Inductor Built-in Step-Down micro DC/DC Converters

This page provides the datasheet information for the XCL202, a member of the XCL201 Inductor Built-in Step-Down micro DC/DC Converters family.

Description

The XCL201/XCL201 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

A stable power supply with an output current of 400mA is configured using only two capacitors connected externally.

Features

  • all : 2.5mm×2.0mm, h=1.0mm Input Voltage : 2.0V ~ 6.0V Output Voltage : 0.8V ~ 4.0V (±2.0%) High Efficiency : 92% (VIN=4.2V,VOUT=3.3V) Output Current : 400mA Oscillation Frequency : 1.2MHz (±15%) Maximum Duty Cycle : 100% Output Capacitor : Low ESR Ceramic Function : Current Limiter Circuit (Constant Current & Latching) Soft-Start Circuit Built-In CL Discharge Control Methods : PWM (XCL201) PWM/PFM Auto (XCL202) Operating Ambient Temperature : -40℃ ~ 85℃ Environmentally.

📥 Download Datasheet

Datasheet preview – XCL202

Datasheet Details

Part number XCL202
Manufacturer Torex Semiconductor
File Size 1.06 MB
Description Inductor Built-in Step-Down micro DC/DC Converters
Datasheet download datasheet XCL202 Datasheet
Additional preview pages of the XCL202 datasheet.

📁 Similar Datasheet

  • XCL211 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters (Torex)
  • XCL212 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters (Torex)
  • XCL223 - Step-Down micro DC/DC Converter (Torex)
  • XCL224 - Step-Down micro DC/DC Converter (Torex)
  • XCL225 - 0.5A Inductor Built-in Step-down micro DC/DC Converter (Torex)
  • XCL226 - 0.5A Inductor Built-in Step-down micro DC/DC Converter (Torex)
  • XCL230 - Step-down micro DC/DC Converter (Torex)
  • XCL231 - Step-down micro DC/DC Converter (Torex)
  • XCL232 - Inductor Built-in Step-Down DC/DC Converter (Torex)
  • XCL233 - Inductor Built-in Step-Down DC/DC Converter (Torex)
Other Datasheets by Torex Semiconductor
  • XCL201 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL205 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL206 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL207 - Inductor Built-in Step-Down micro DC/DC Converters
  • XCL208 - 400mA Inductor Built-in Step-Down micro DC/DC Converters
  • XCL209 - 400mA Inductor Built-in Step-Down micro DC/DC Converters
  • XCL210 - 50mA/200mA Inductor Built-in Step-Down DC/DC Converters
  • XCL213 - 1.5A Inductor Built-in Step-Down Converters

Full PDF Text Transcription

Click to expand full text

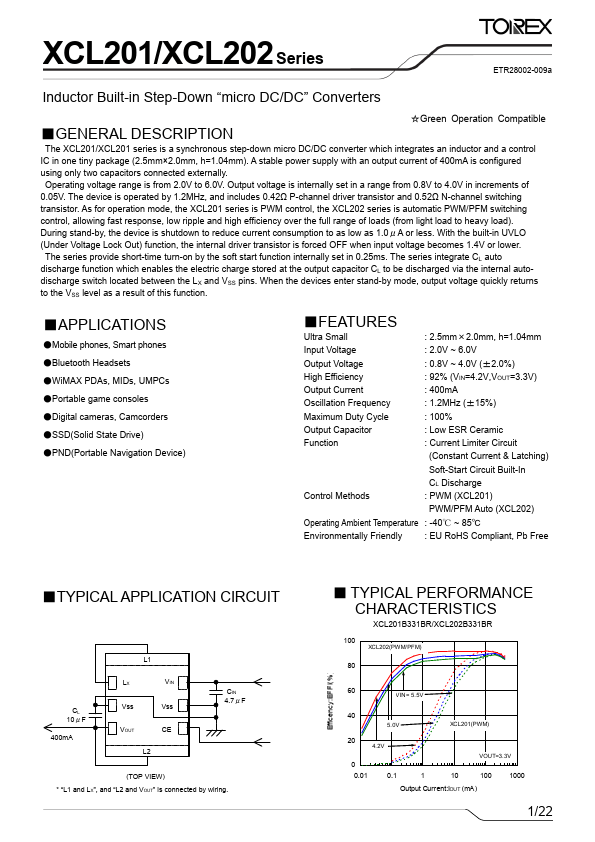

XCL201/XCL202 Series ETR28002-009 Inductor Built-in Step-Down “micro DC/DC” Converters ☆Green Operation Compatible ■GENERAL DESCRIPTION The XCL201/XCL201 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm). A stable power supply with an output current of 400mA is configured using only two capacitors connected externally. Operating voltage range is from 2.0V to 6.0V. Output voltage is internally set in a range from 0.8V to 4.0V in increments of 0.05V. The device is operated by 1.2MHz, and includes 0.42Ω P-channel driver transistor and 0.52Ω N-channel switching transistor.
