XCL201 - Inductor Built-in Step-Down micro DC/DC Converters

Description

The XCL201/XCL201 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

A stable power supply with an output current of 400mA is configured using only two capacitors connected externally.

Features

  • all : 2.5mm×2.0mm, h=1.0mm Input Voltage : 2.0V ~ 6.0V Output Voltage : 0.8V ~ 4.0V (±2.0%) High Efficiency : 92% (VIN=4.2V,VOUT=3.3V) Output Current : 400mA Oscillation Frequency : 1.2MHz (±15%) Maximum Duty Cycle : 100% Output Capacitor : Low ESR Ceramic Function : Current Limiter Circuit (Constant Current & Latching) Soft-Start Circuit Built-In CL Discharge Control Methods : PWM (XCL201) PWM/PFM Auto (XCL202) Operating Ambient Temperature : -40℃ ~ 85℃ Environmentally.

📥 Download Datasheet

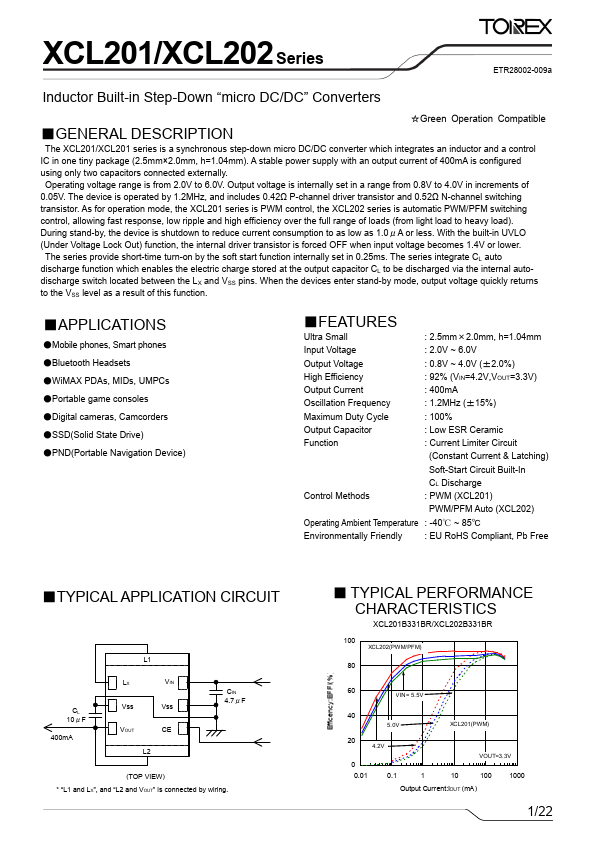

Datasheet preview – XCL201

Datasheet Details

Part number XCL201
Manufacturer Torex Semiconductor
File Size 1.06 MB
Description Inductor Built-in Step-Down micro DC/DC Converters
Datasheet download datasheet XCL201 Datasheet
