IRF7805Z - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 16 A (VGS = 10V).
  • RDS(ON) ＜ 6.8mΩ (VGS = 10V).
  • HEXFET Power MOSFET S 1 S 2 S 3 G 4 SOP-8 +0.04 0.21 -0.02 AA 8 D 7 D 6 D 5 D 1.50 0.15.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Single Pulse Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Case Junction Tempera.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF7805Z Power MOSFET International Rectifier
IRF7805ZPbF Power MOSFET International Rectifier
IRF7805ZPBF-1 Power MOSFET International Rectifier
IRF7805 N-Channel Power MOSFET International Rectifier
IRF7805A N-Channel Power MOSFET International Rectifier

Other Datasheets by Kexin Semiconductor

Part Number Description
IRF7855 N-Channel MOSFET
IRF7205 Power MOSFET
IRF730S N-Channel MOSFET
IRF7476 N-Channel MOSFET
IRF1404Z N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

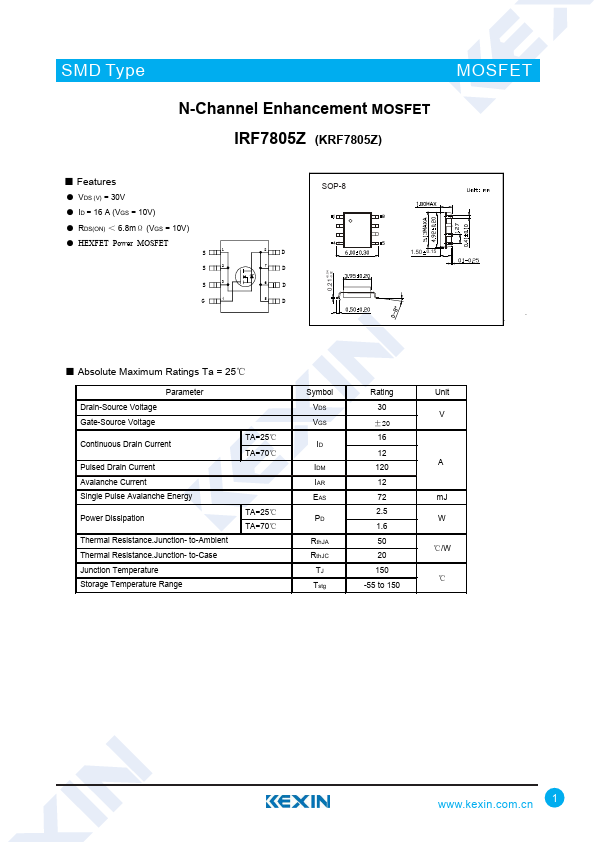

SMD Type MOSFET N-Channel Enhancement MOSFET IRF7805Z (KRF7805Z) ■ Features ● VDS (V) = 30V ● ID = 16 A (VGS = 10V) ● RDS(ON) ＜ 6.8mΩ (VGS = 10V) ● HEXFET Power MOSFET S 1 S 2 S 3 G 4 SOP-8 +0.04 0.21 -0.02 AA 8 D 7 D 6 D 5 D 1.50 0.15 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Single Pulse Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ Symbol VDS VGS ID IDM IAR EAS PD RthJA RthJC TJ Tstg Rating 30 ±20 16 12 120 12 72 2.5 1.6 50 20 150 -55 to 150 Unit V A mJ W ℃/W ℃ www.kexin.com.
