IRF730S - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) =400V.
  • ID = 5.5 A (VGS = 10V).
  • RDS(ON) ＜ 1Ω (VGS = 10V).
  • Fast switching.
  • Low thermal resistance d g s.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Tc = 25℃ Tc = 100℃ Pulsed Drain Current Avalanche Current Power Dissipation Non-Repetitive Avalanche Energy (Note.1) Tc = 25℃ Ta = 25℃ Repetitive Avalanche Energy (Note.2) Peak Diode Recovery dv/dt Thermal Resistance. Junction- to-Ambi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF730S HEXFET Power MOSFET International Rectifier
IRF730S Power MOSFET Vishay
IRF730SPBF HEXFET Power MOSFET International Rectifier
IRF730 PowerMOS transistor NXP
IRF730 N-Channel Power MOSFET STMicroelectronics

Other Datasheets by Kexin Semiconductor

Part Number Description
IRF7205 Power MOSFET
IRF7476 N-Channel MOSFET
IRF7805Z N-Channel Enhancement MOSFET
IRF7855 N-Channel MOSFET
IRF1404Z N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

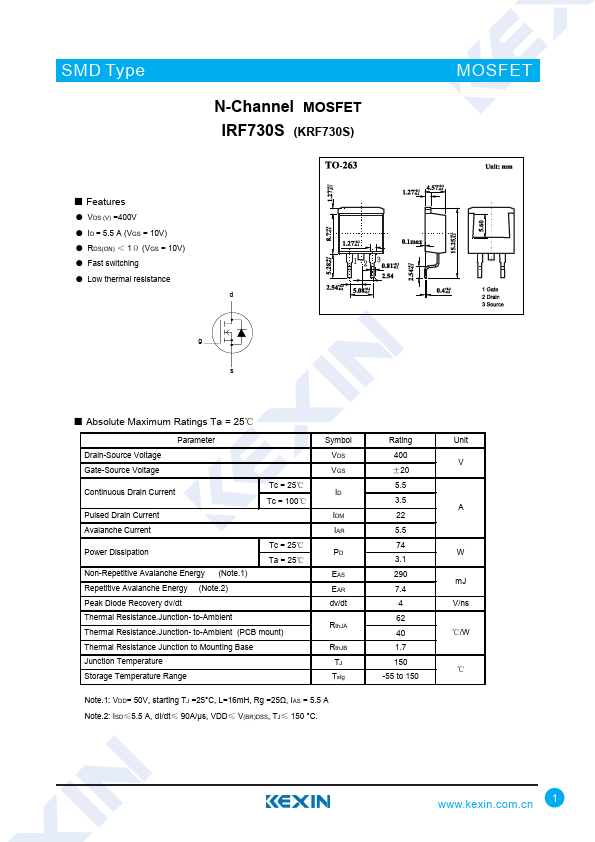

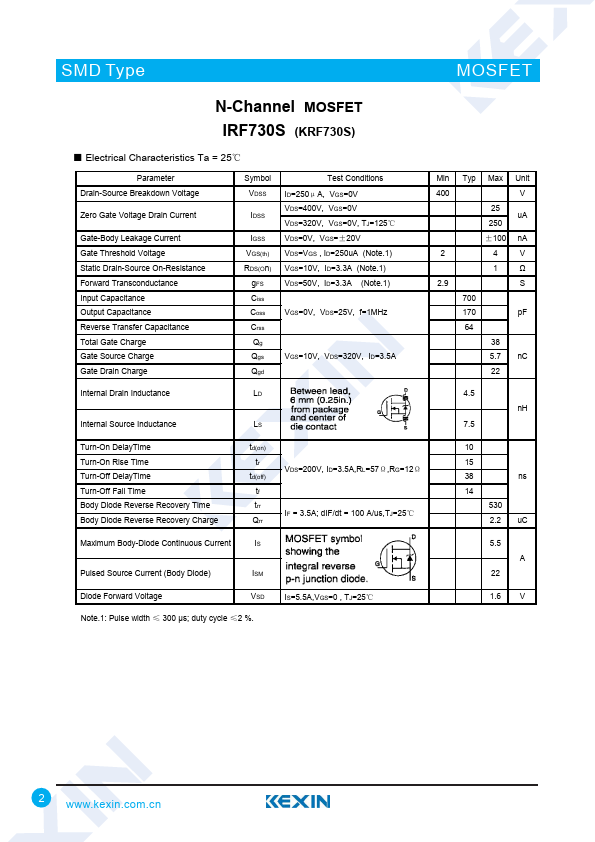

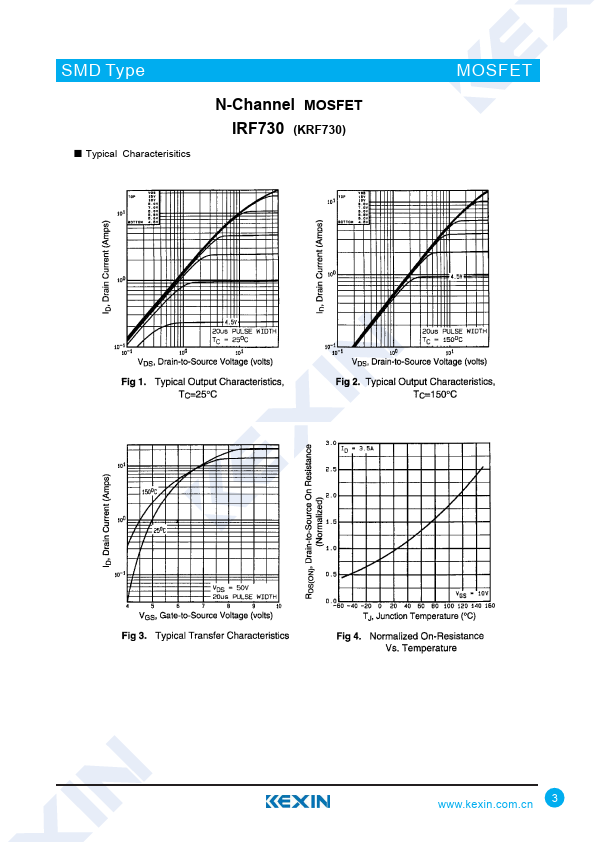

SMD Type N-Channel MOSFET IRF730S (KRF730S) MOSFET ■ Features ● VDS (V) =400V ● ID = 5.5 A (VGS = 10V) ● RDS(ON) ＜ 1Ω (VGS = 10V) ● Fast switching ● Low thermal resistance d g s ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Tc = 25℃ Tc = 100℃ Pulsed Drain Current Avalanche Current Power Dissipation Non-Repetitive Avalanche Energy (Note.1) Tc = 25℃ Ta = 25℃ Repetitive Avalanche Energy (Note.2) Peak Diode Recovery dv/dt Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Ambient (PCB mount) Thermal Resistance Junction to Mounting Base Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM IAR PD EAS EAR dv/dt RthJA RthJB TJ Tstg Note.
