2KK5132DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 30 V.
  • ID (at VGS=10V) = 60 A.
  • RDS(ON) (at VGS = 10 V) < 5.2 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 8.6 mΩ.
  • 100% UIS Tested S.
  • 100% Rg Tested S S G PDFN5x6-8 D D D D.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ±20 Continuous Drain Current TC = 25℃ 60 ID TC = 100℃ 39 A Pulsed Drain Current (Note 2) IDM 100 Continuous Drain Current T.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5130 N-Channel MOSFET
2KK5100DFN N-Channel MOSFET
2KK5102DFN N-Channel MOSFET
2KK5103 N-Channel MOSFET
2KK5106 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

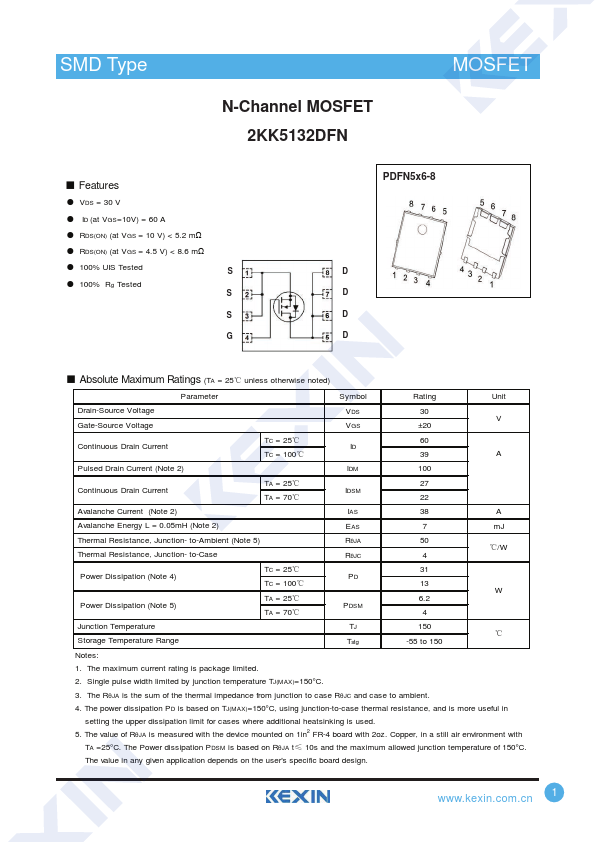

SMD Type N-Channel MOSFET 2KK5132DFN MOSFET ■ Features ● VDS = 30 V ● ID (at VGS=10V) = 60 A ● RDS(ON) (at VGS = 10 V) < 5.2 mΩ ● RDS(ON) (at VGS = 4.5 V) < 8.6 mΩ ● 100% UIS Tested S ● 100% Rg Tested S S G PDFN5x6-8 D D D D ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ±20 Continuous Drain Current TC = 25℃ 60 ID TC = 100℃ 39 A Pulsed Drain Current (Note 2) IDM 100 Continuous Drain Current TA = 25℃ 27 IDSM TA = 70℃ 22 Avalanche Current (Note 2) IAS 38 A Avalanche Energy L = 0.
