2KK5103 - N-Channel MOSFET

Key Features

  • s.
  • VDS = 700 V.
  • ID = 7 A.
  • RDS(ON) (at VGS = 10 V) < 0.6 Ω.
  • Qg(typ. ) = 13 nC.
  • 100% avalanche tested N-Channel MOSFET 2KK5103 TO-252 D G S MOSFET 23 1 1. Gate (G) 2. Drain (D) 3. Source (S).
  • Absolute Maximum Ratings (TC = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TC = 25℃ ID TC = 100℃ Pulsed Drain Current (Note 1) IDM Single Pulse Avalanche Energy (Note 2) EAS Repetitive Aval.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5100DFN N-Channel MOSFET
2KK5102DFN N-Channel MOSFET
2KK5106 N-Channel MOSFET
2KK5113 N-Channel MOSFET
2KK5115DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

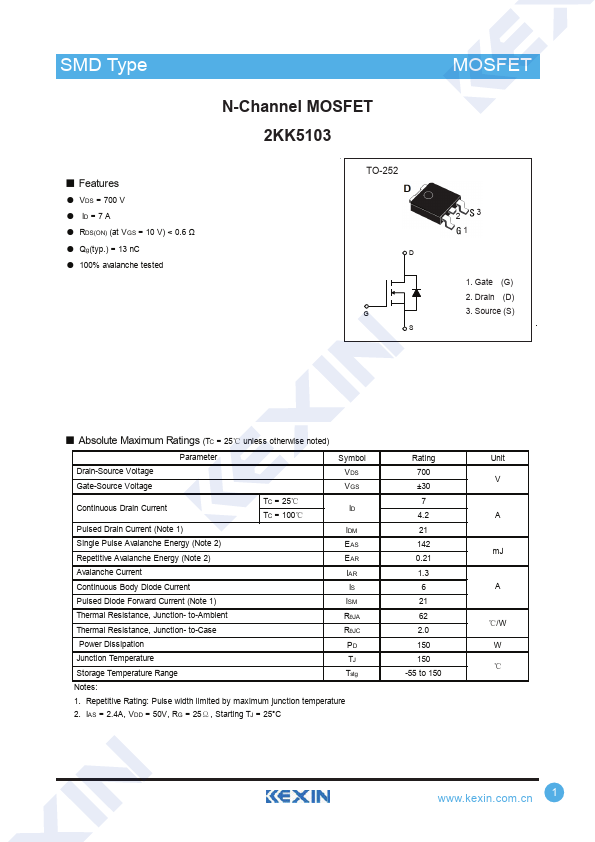

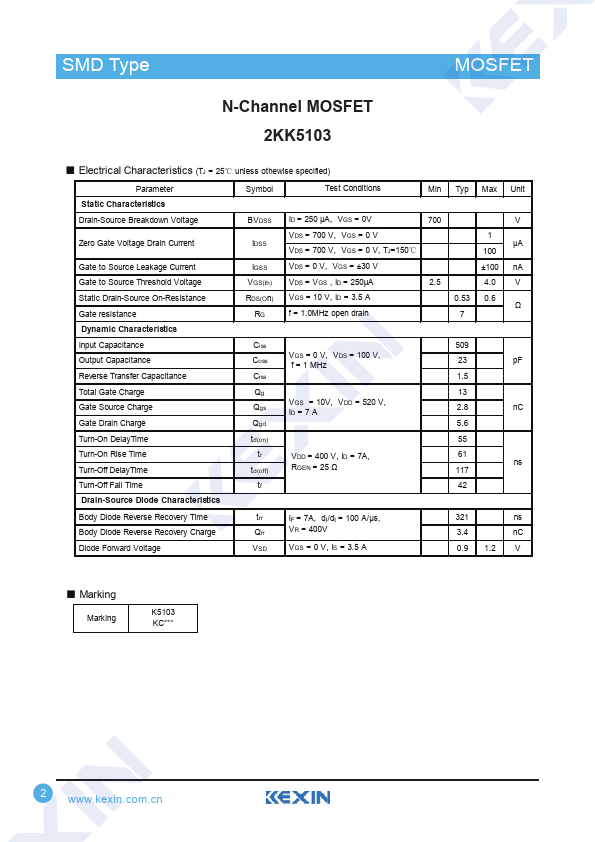

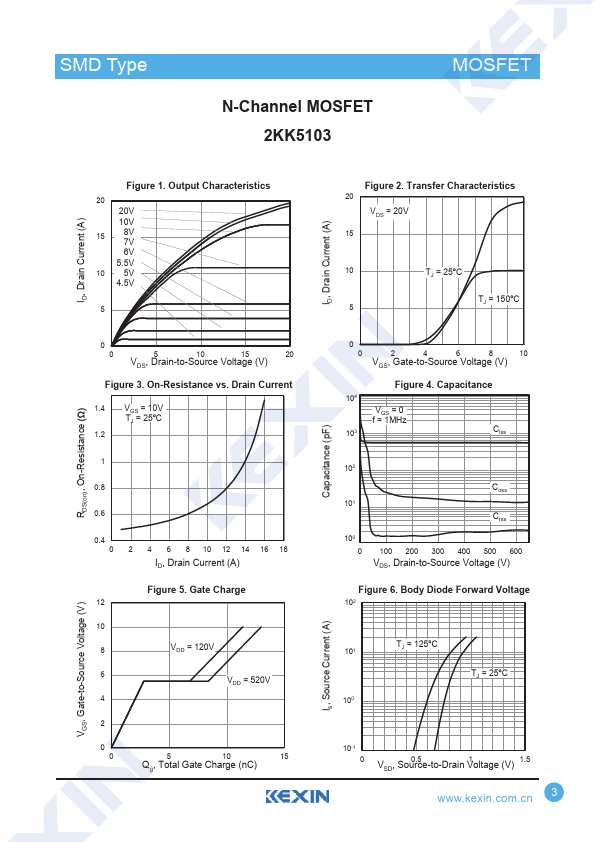

SMD Type ■ Features ● VDS = 700 V ● ID = 7 A ● RDS(ON) (at VGS = 10 V) < 0.6 Ω ● Qg(typ.) = 13 nC ● 100% avalanche tested N-Channel MOSFET 2KK5103 TO-252 D G S MOSFET 23 1 1. Gate (G) 2. Drain (D) 3.
