2KK5102DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 80 V.
  • ID = 160 A.
  • RDS(ON) (at VGS = 10 V) < 2.7 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 3.3 mΩ S S S G PDFN5x6-8 D D D D.
  • Absolute Maximum Ratings (Tj = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25℃ Continuous Drain Current ID TC = 100℃ TC = 25℃ Power Dissipation PD TC = 100℃ TA = 25℃ Continuous Drain Current ID TA = 100℃ TA = 25℃ Power Dissipation PD TA = 100℃ Pulsed Drain Current (Not.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5100DFN N-Channel MOSFET
2KK5103 N-Channel MOSFET
2KK5106 N-Channel MOSFET
2KK5113 N-Channel MOSFET
2KK5115DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

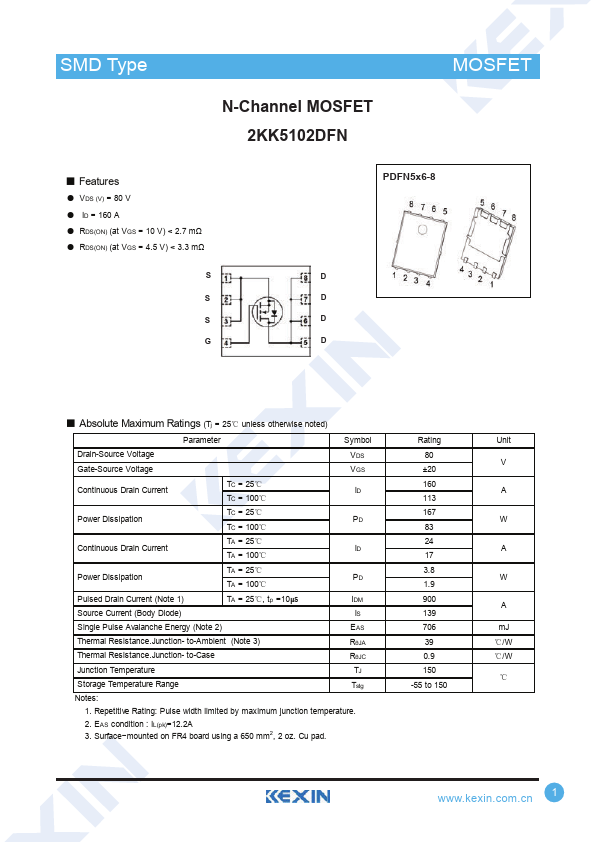

SMD Type N-Channel MOSFET 2KK5102DFN MOSFET ■ Features ● VDS (V) = 80 V ● ID = 160 A ● RDS(ON) (at VGS = 10 V) < 2.7 mΩ ● RDS(ON) (at VGS = 4.5 V) < 3.3 mΩ S S S G PDFN5x6-8 D D D D ■ Absolute Maximum Ratings (Tj = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25℃ Continuous Drain Current ID TC = 100℃ TC = 25℃ Power Dissipation PD TC = 100℃ TA = 25℃ Continuous Drain Current ID TA = 100℃ TA = 25℃ Power Dissipation PD TA = 100℃ Pulsed Drain Current (Note 1) TA = 25℃, tp =10μs IDM Source Current (Body Diode) IS Single Pulse Avalanche Energy (Note 2) EAS Thermal Resistance.Junction- to-Ambient (Note 3) RθJA Thermal Resistance.
