2KK5115DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60 V.
  • IDMAX = 80 A.
  • RDS(ON) < 7.5mΩ @ VGS=10V.
  • RDS(ON) < 9.5mΩ @ VGS=4.5V S S S G DFN5x6-8 D D D D.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Drain-Source Voltage VDS 60 Gate-Source Voltage VGS ±20 Continuous Drain Current TC=25℃ 80 ID TC=100℃ 51 Continuous Drain Current TA=25℃ 10 ID TA=100℃ 8 Pulsed Drain Current (Note 1) TC=100℃ IDM 200 Diode Continuous Forward Current TC=25℃ IS 25 Av.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5113 N-Channel MOSFET
2KK5116 N-Channel MOSFET
2KK5117 N-Channel MOSFET
2KK5100DFN N-Channel MOSFET
2KK5102DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

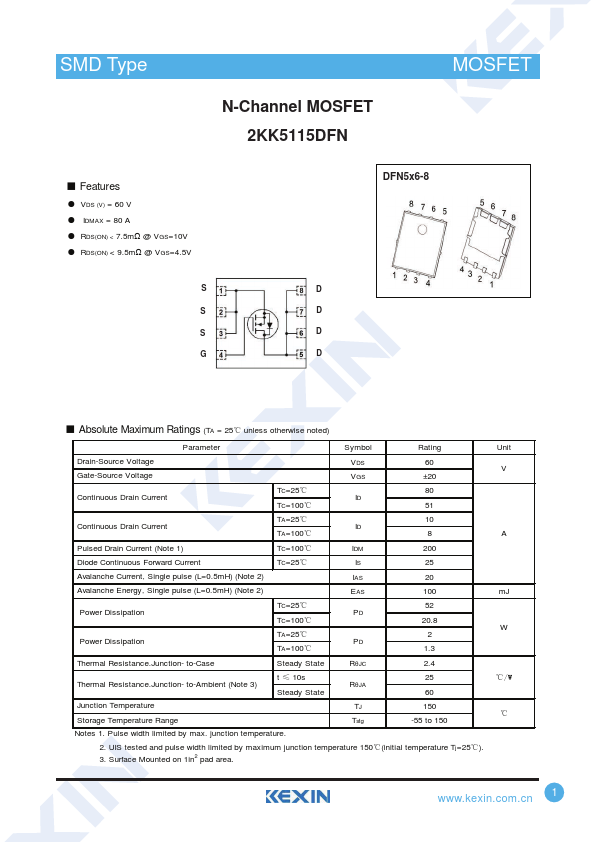

SMD Type N-Channel MOSFET 2KK5115DFN MOSFET ■ Features ● VDS (V) = 60 V ● IDMAX = 80 A ● RDS(ON) < 7.5mΩ @ VGS=10V ● RDS(ON) < 9.5mΩ @ VGS=4.5V S S S G DFN5x6-8 D D D D ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Drain-Source Voltage VDS 60 Gate-Source Voltage VGS ±20 Continuous Drain Current TC=25℃ 80 ID TC=100℃ 51 Continuous Drain Current TA=25℃ 10 ID TA=100℃ 8 Pulsed Drain Current (Note 1) TC=100℃ IDM 200 Diode Continuous Forward Current TC=25℃ IS 25 Avalanche Current, Single pulse (L=0.5mH) (Note 2) IAS 20 Avalanche Energy, Single pulse (L=0.5mH) (Note 2) EAS 100 Power Dissipation TC=25℃ PD TC=100℃ 52 20.8 Power Dissipation TA=25℃ 2 PD TA=100℃ 1.3 Thermal Resistance.
