2KK5100DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 40 V.
  • ID (at VGS=10V) =40 A.
  • RDS(ON) (at VGS = 10 V) < 8.5 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 14.5 mΩ S S S G PDFN3.3x3.3-8 Top View Pin 1 Top View D 1 8 2 7 D 3 6 4 5 D D Bottom View.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ±20 TC = 25℃ 40 Continuous Drain Current (Note 1) ID TC = 100℃ 31 A Pulsed Drain Current (Note 2) IDM 100.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5102DFN N-Channel MOSFET
2KK5103 N-Channel MOSFET
2KK5106 N-Channel MOSFET
2KK5113 N-Channel MOSFET
2KK5115DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

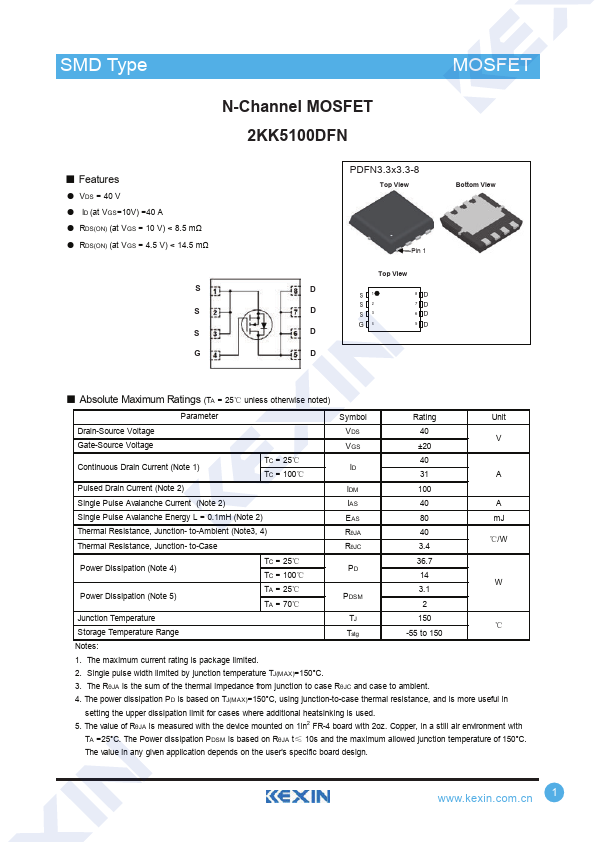

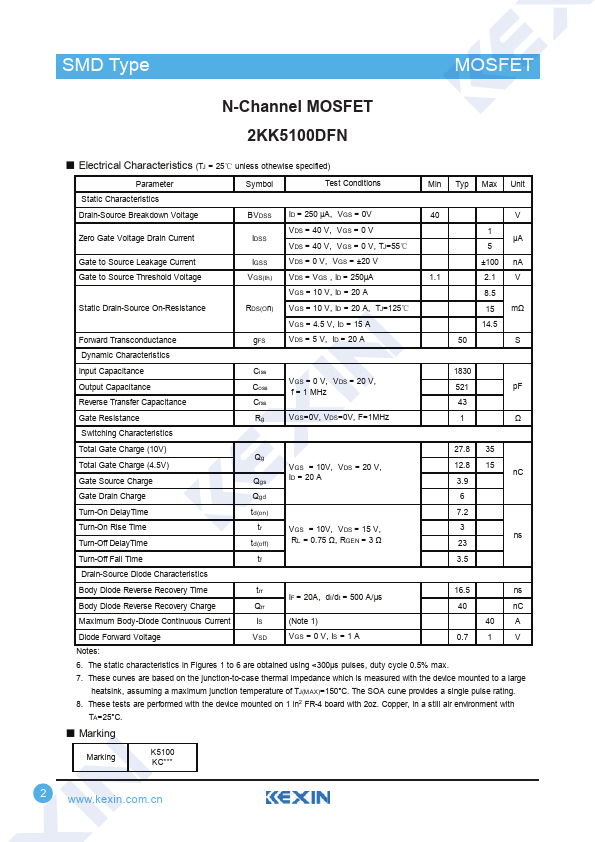

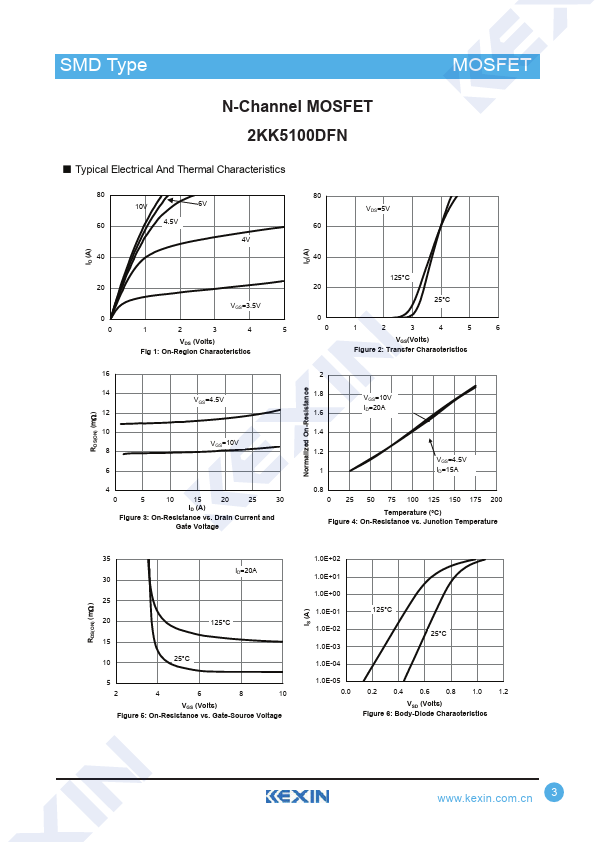

SMD Type MOSFET N-Channel MOSFET 2KK5100DFN ■ Features ● VDS = 40 V ● ID (at VGS=10V) =40 A ● RDS(ON) (at VGS = 10 V) < 8.5 mΩ ● RDS(ON) (at VGS = 4.5 V) < 14.5 mΩ S S S G PDFN3.3x3.3-8 Top View Pin 1 Top View D 1 8 2 7 D 3 6 4 5 D D Bottom View ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ±20 TC = 25℃ 40 Continuous Drain Current (Note 1) ID TC = 100℃ 31 A Pulsed Drain Current (Note 2) IDM 100 Single Pulse Avalanche Current (Note 2) IAS 40 A Single Pulse Avalanche Energy L = 0.1mH (Note 2) EAS 80 mJ Thermal Resistance, Junction- to-Ambient (Note3, 4) Thermal Resistance, Junction- to-Case RθJA 40 RθJC 3.
