2KK5130 - N-Channel MOSFET

Key Features

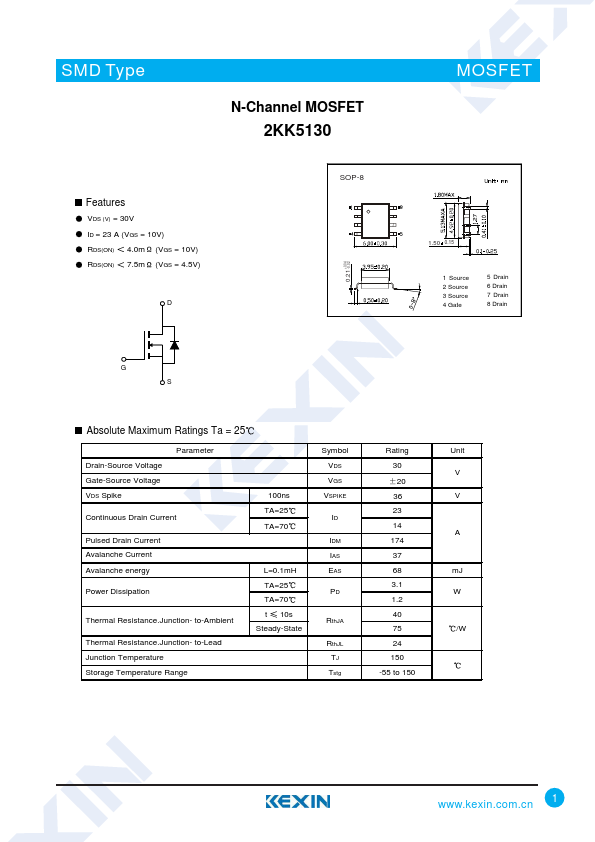

  • VDS (V) = 30V ID = 23 A (VGS = 10V) RDS(ON) 4.0m (VGS = 10V) RDS(ON) 7.5m (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage VDS Spike Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperat.
