BL250N04-3DL8 - N-Channel Enhancement Mode MOSFET

Features

  • Lower RDS(on).
  • Good stability and uniformity.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: PDFN3×3-8L.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number BL250N04-3DL8 Package PDFN3×3-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 250N04 Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter D.

📥 Download Datasheet

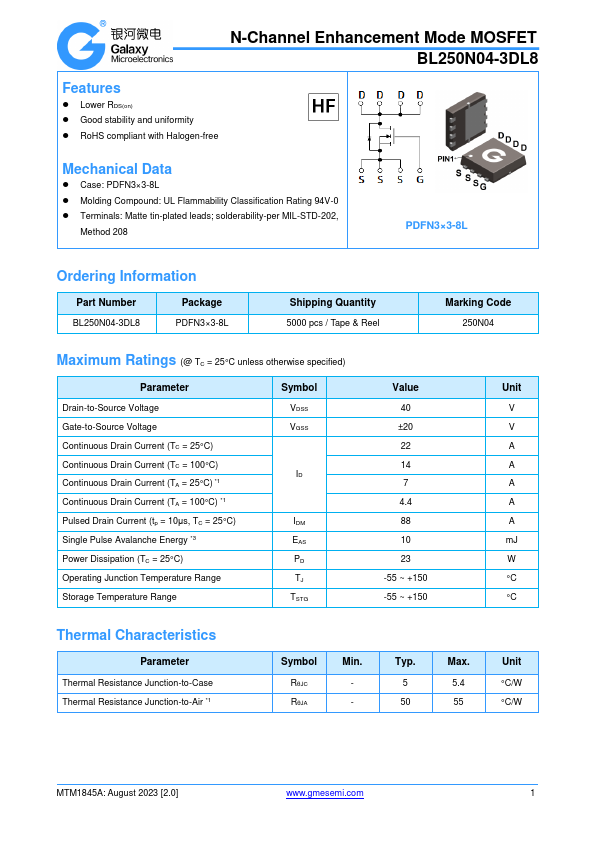

Datasheet preview – BL250N04-3DL8

📁 Similar Datasheet

  • BL2513A - USB dedicated charging port (DCP) controller (BELLING)
  • BL2513M - USB dedicated charging port (DCP) controller (BELLING)
  • BL2514A - USB dedicated charging port (DCP) controller (BELLING)
  • BL2514M - USB dedicated charging port (DCP) controller (BELLING)
  • BL2553 - Precision Load Switch (BELLING)
  • BL2554 - Adjustable USB Load Current Switch (BELLING)
  • BL2555 - 1CH ADJ Current-Limited Power Distribution Switch (BELLING)
  • BL2556 - 1A USB Load Current Switch (BELLING)
  • BL25664AA - 512MB / 1GB / 2GB (x64) UNBUFFERED DDR2 SDRAM DIMM (ETC)
  • BL25CM2A - 2M-Bits EEPROM (BELLING)
Other Datasheets by GME
  • BL200N06-S8 - N-Channel Enhancement Mode MOSFET
  • BL200N06R - N-Channel Enhancement Mode MOSFET
  • BL200P03-3DL8 - P-Channel Enhancement Mode MOSFET
  • BL2300 - N-Channel Power Mosfet
  • BL2301 - P-Channel Enhancement Mode Field Effect Transistor
  • BL2301W - P-Channel Enhancement MOSFET
  • BL2302 - N-Channel Enhancement Mode Field Effect Transistor
  • BL2303 - P-Channel Power Mosfet

Full PDF Text Transcription

Click to expand full text
N-Channel Enhancement Mode MOSFET BL250N04-3DL8 Features  Lower RDS(on)  Good stability and uniformity  RoHS compliant with Halogen-free Mechanical Data  Case: PDFN3×3-8L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number BL250N04-3DL8 Package PDFN3×3-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 250N04 Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Continuous Drain Current (TA = 25°C) *1 Continuous Drain Current (TA = 100°C) *1 Pulsed Drain Current (tp = 10μs, TC = 25°C) Single Pulse Avalanch
