BL2300 - N-Channel Power Mosfet

Features

  • VDS=20V,RDS(ON)=40m @VGS=4.5V,ID=5.0A Pb.
  • VDS=20V,RDS(ON)=60m @VGS=2.5V,ID=4.0A Lead-free.
  • VDS=20V,,RDS(ON)=75m @VGS=1.8V,ID=1.0A.
  • Electrostatic Sensitive Devices. BL2300.

📥 Download Datasheet

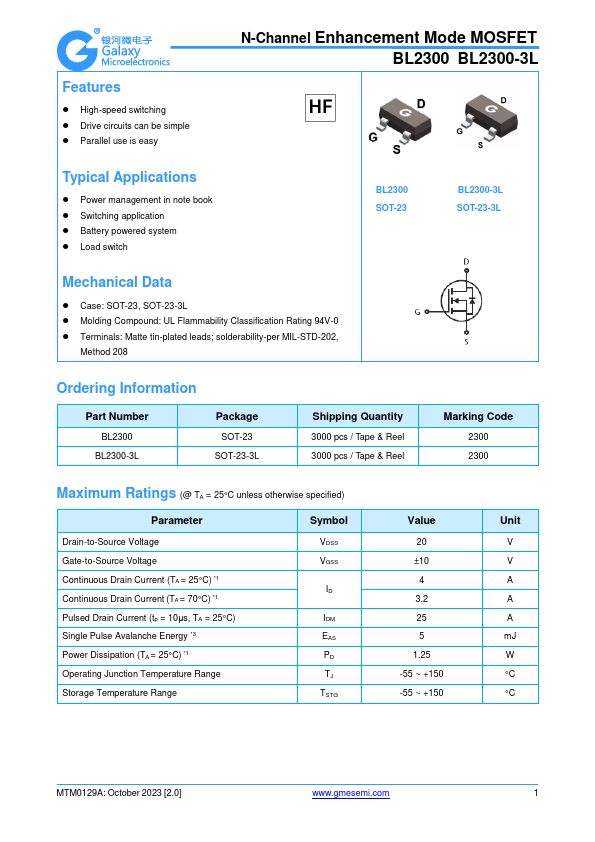

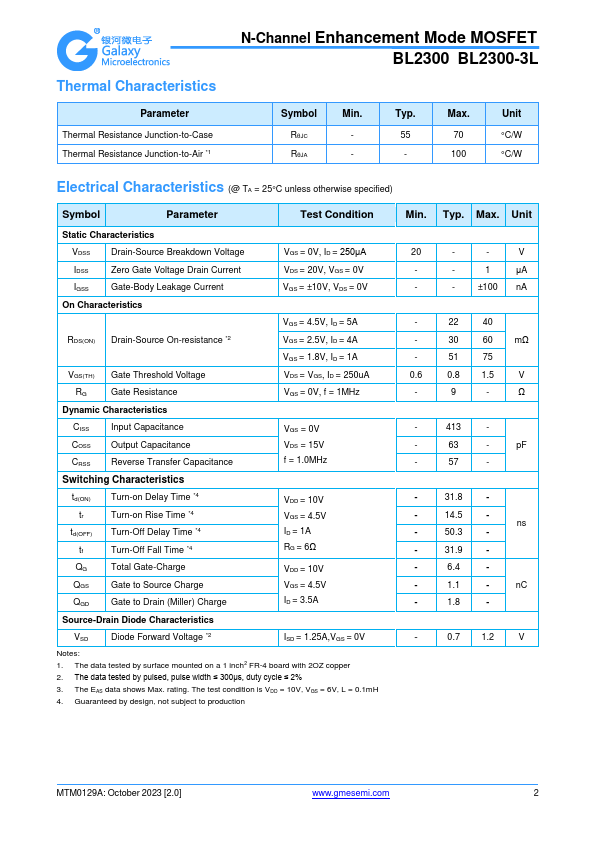

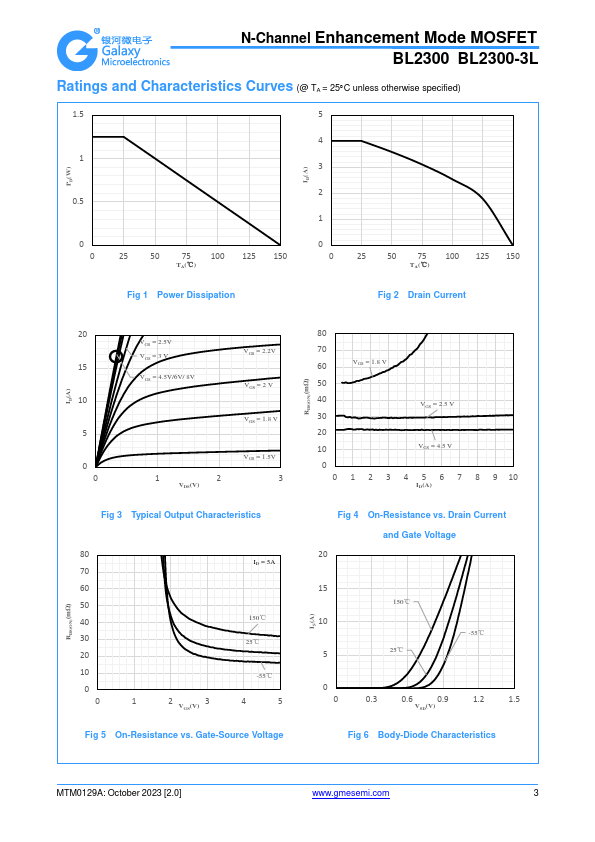

Datasheet preview – BL2300

📁 Similar Datasheet

Other Datasheets by GME
  • BL2301 - P-Channel Enhancement Mode Field Effect Transistor
  • BL2301W - P-Channel Enhancement MOSFET
  • BL2302 - N-Channel Enhancement Mode Field Effect Transistor
  • BL2303 - P-Channel Power Mosfet
  • BL2304 - N-Channel Power Mosfet
  • BL2305 - P-Channel Power Mosfet
  • BL2306 - N-Channel Power Mosfet
  • BL2308 - N-Channel Power Mosfet

Full PDF Text Transcription

Click to expand full text
Production specification N-Channel Enhancement Mode Field Effect Transistor FEATURES  VDS=20V,RDS(ON)=40m @VGS=4.5V,ID=5.0A Pb  VDS=20V,RDS(ON)=60m @VGS=2.5V,ID=4.0A Lead-free  VDS=20V,,RDS(ON)=75m @VGS=1.8V,ID=1.0A  Electrostatic Sensitive Devices. BL2300 APPLICATIONS  Power Management in Note book.  Portable Equipment.  Battery Powered System.  Load Switch.  DSC. ORDERING INFORMATION Type No. Marking BL2300 2300 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VDSS VGSS Drain-Source voltage Gate -Source voltage 20 ±10 ID Maximum Drain current TA=25℃ 3.8 IDM PD RθJA TJ,Tstg Pulsed Drain current Power Dissipation Thermal resistance,Junction-to-Ambient Operating Junction and StorageTemperature 15 1.
