PESD5V0S2BT-Q - Low capacitance bidirectional double ESD protection diode

nexperia

📥 Download Datasheet

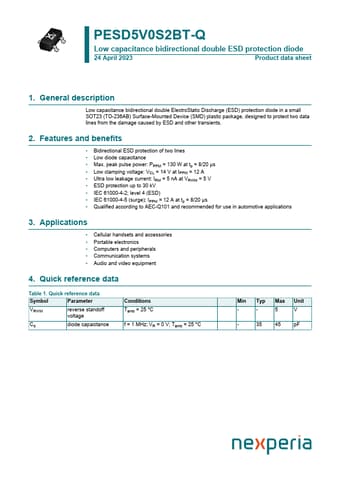

PESD5V0S2BT-Q Datasheet Preview — Preview of PESD5V0S2BT-Q PDF

Datasheet Details

Part number	PESD5V0S2BT-Q
Manufacturer	nexperia
File Size	223.64 KB
Description	Low capacitance bidirectional double ESD protection diode
Datasheet	PESD5V0S2BT-Q-nexperia.pdf

PESD5V0S2BT-Q Product details

Description

Low capacitance bidirectional double ElectroStatic Discharge (ESD) protection diode in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, designed to protect two data lines from the damage caused by ESD and other transients.

Features

Bidirectional ESD protection of two lines.
Low diode capacitance.
Max. peak pulse power: PPPM = 130 W at tp = 8/20 µs.
Low clamping voltage: VCL = 14 V at IPPM = 12 A.
Ultra low leakage current: IRM = 5 nA at VRWM = 5 V.
ESD protection up to 30 kV.
IEC 61000-4-2; level 4 (ESD).
IEC 61000-4-5 (surge); IPPM = 12 A at tp = 8/20 µs.
Qualified according to AEC-Q101 and recommended for use in automotive.
