PESD5V0S2BQA - Protection against high surge currents

Name: PESD5V0S2BQA
SKU: PESD5V0S2BQA-1392025

nexperia

📥 Download Datasheet

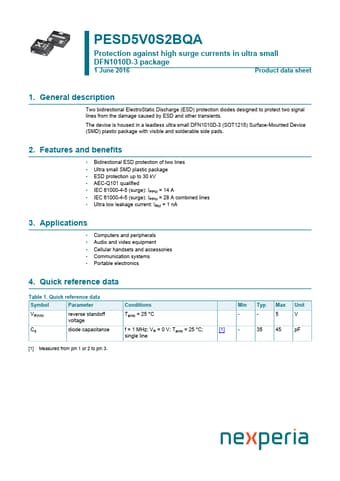

PESD5V0S2BQA Datasheet Preview — Preview of PESD5V0S2BQA PDF

Datasheet Details

Part number	PESD5V0S2BQA
Manufacturer	nexperia
File Size	740.27 KB
Description	Protection against high surge currents
Datasheet	PESD5V0S2BQA-nexperia.pdf

PESD5V0S2BQA Product details

Description

Two bidirectional ElectroStatic Discharge (ESD) protection diodes designed to protect two signal lines from the damage caused by ESD and other transients.

Features

Bidirectional ESD protection of two lines.
Ultra small SMD plastic package.
ESD protection up to 30 kV.
AEC-Q101 qualified.
IEC 61000-4-5 (surge): IPPM = 14 A.
IEC 61000-4-5 (surge): IPPM = 28 A combined lines.
Ultra low leakage current: IRM = 1 nA 3.
