PESD5V0S1BB - Bidirectional ESD protection diode

nexperia

The PESD5V0S1BB by nexperia is a Bidirectional ESD protection diode. Below is the official datasheet preview.

📥 Download Datasheet

PESD5V0S1BB Bidirectional ESD protection diode by nexperia - Datasheet Preview — Official preview page of the **PESD5V0S1BB** Bidirectional ESD protection diode datasheet (nexperia).

Datasheet Details

Part number	PESD5V0S1BB
Manufacturer	nexperia
File Size	181.94 KB
Description	Bidirectional ESD protection diode
Datasheet	PESD5V0S1BB-nexperia.pdf

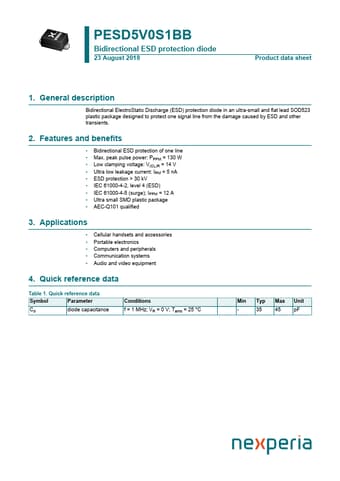

Additional preview pages of the PESD5V0S1BB datasheet.

PESD5V0S1BB Product details

Description

Bidirectional ElectroStatic Discharge (ESD) protection diode in an ultra-small and flat lead SOD523 plastic package designed to protect one signal line from the damage caused by ESD and other transients.

Features

Bidirectional ESD protection of one line.
Max. peak pulse power: PPPM = 130 W.
Low clamping voltage: V(CL)R = 14 V.
Ultra low leakage current: IRM = 5 nA.
ESD protection > 30 kV.
IEC 61000-4-2, level 4 (ESD).
IEC 61000-4-5 (surge); IPPM = 12 A.
Ultra small SMD plastic package.
AEC-Q101 qualified 3.
