PESD5V0S1UB - (PESDxS1UB) ESD PROTECTION DIODES IN SOD 523 PACKAGE

Name: PESD5V0S1UB
SKU: PESD5V0S1UB-573316

NXP

📥 Download Datasheet

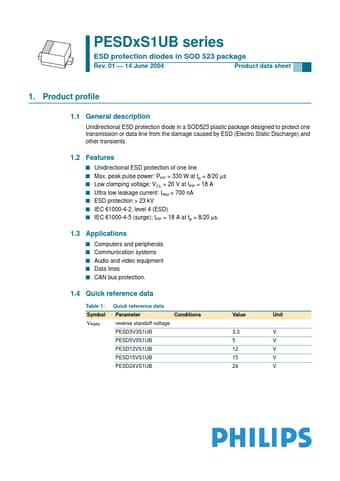

PESD5V0S1UB Datasheet Preview — Preview of PESD5V0S1UB PDF

Datasheet Details

Part number	PESD5V0S1UB
Manufacturer	NXP
File Size	149.27 KB
Description	(PESDxS1UB) ESD PROTECTION DIODES IN SOD 523 PACKAGE
Datasheet	PESD5V0S1UB_PhilipsSemiconductors.pdf

PESD5V0S1UB Product details

Description

Unidirectional ESD protection diode in a SOD523 plastic package designed to protect one transmission or data line from the damage caused by ESD (Electro Static Discharge) and other transients.

Features

s s s s s s s Unidirectional ESD protection of one line Max. peak pulse power: PPP = 330 W at tp = 8/20 µs Low clamping voltage: VCL = 20 V at IPP = 18 A Ultra low leakage current: IRM < 700 nA ESD protection > 23 kV IEC 61000-4-2, level 4 (ESD) IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 µs. 1.3.
