PESD5V0S1USF - Unidirectional ESD protection diode

Description

Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

The device is encapsulated in a leadless super small DSN0603-2 (SOD962) Surface-Mounted Device (SMD) package.

Features

  • ESD protection of one line.
  • Super small SMD package.
  • Ultra low leakage current IRM < 1 nA.
  • ESD protection up to 30 kV.
  • IEC 61000-4-2; level 4 (ESD).
  • IEC 61643-321 (surge); IPPM = 3.5 A 1.3.

📥 Download Datasheet

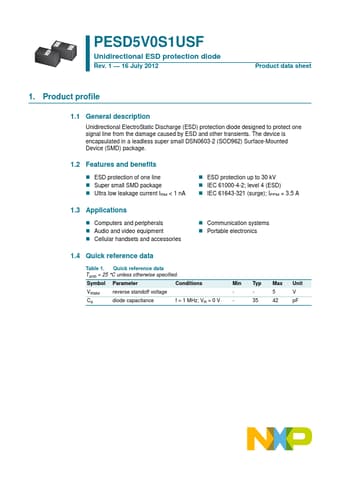

Datasheet preview – PESD5V0S1USF

Datasheet Details

Part number PESD5V0S1USF
Manufacturer NXP Semiconductors
File Size 182.79 KB
Description Unidirectional ESD protection diode
Datasheet download datasheet PESD5V0S1USF Datasheet
Additional preview pages of the PESD5V0S1USF datasheet.

📁 Similar Datasheet

  • PESD5V0S1UB - ESD protection diode (nexperia)
  • PESD5V0S1ULD - Unidirectional ESD protection diode (nexperia)
  • PESD5V0S1BA - Bidirectional ESD protection diode (nexperia)
  • PESD5V0S1BB - Transient Voltage Suppressors ESD Protection Diodes (msksemi)
  • PESD5V0S1BB - Bidirectional ESD protection diode (nexperia)
  • PESD5V0S1BL - TVS DIODE (Leiditech)
  • PESD5V0S1BL - Transient Voltage Suppressors (SXSEMI)
  • PESD5V0S1BL - Low capacitance bidirectional ESD protection diode (nexperia)
  • PESD5V0S1BLD - Bidirectional ESD protection diode (nexperia)
  • PESD5V0S1BSF - Ultra low profile bidirectional low capacitance ESD protection diode (NXP Semiconductors)
Other Datasheets by NXP
  • PESD5V0S1UA - Unidirectional ESD Protection
  • PESD5V0S1UB - (PESDxS1UB) ESD PROTECTION DIODES IN SOD 523 PACKAGE
  • PESD5V0S1UJ - Unidirectional ESD Protection
  • PESD5V0S1UL - Unidirectional ESD protection diodes
  • PESD5V0S1ULD - Unidirectional ESD protection diode
  • PESD5V0S1BA - Low capacitance bidirectional ESD protection diodes
  • PESD5V0S1BB - Low capacitance bidirectional ESD protection diodes
  • PESD5V0S1BL - Low capacitance bidirectional ESD protection diodes

Full PDF Text Transcription

Click to expand full text
PESD5V0S1USF Unidirectional ESD protection diode Rev. 1 — 16 July 2012 Product data sheet 1. Product profile 1.1 General description Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is encapsulated in a leadless super small DSN0603-2 (SOD962) Surface-Mounted Device (SMD) package. 1.2 Features and benefits  ESD protection of one line  Super small SMD package  Ultra low leakage current IRM < 1 nA  ESD protection up to 30 kV  IEC 61000-4-2; level 4 (ESD)  IEC 61643-321 (surge); IPPM = 3.5 A 1.3 Applications  Computers and peripherals  Audio and video equipment  Cellular handsets and accessories  Communication systems  Portable electronics 1.
