LM25101B, LM25101 - Half-Bridge Gate Drivers

Texas Instruments

The LM25101B by Texas Instruments is a Half-Bridge Gate Drivers. Below is the official datasheet preview.

📥 Download Datasheet

LM25101B Half-Bridge Gate Drivers by Texas Instruments - Datasheet Preview — Official preview page of the **LM25101B** Half-Bridge Gate Drivers datasheet (Texas Instruments).

Datasheet Details

Part number	LM25101B, LM25101
Manufacturer	Texas Instruments
File Size	1.92 MB
Description	Half-Bridge Gate Drivers
Datasheet	LM25101-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM25101B, LM25101. Please refer to the document for exact specifications by model.

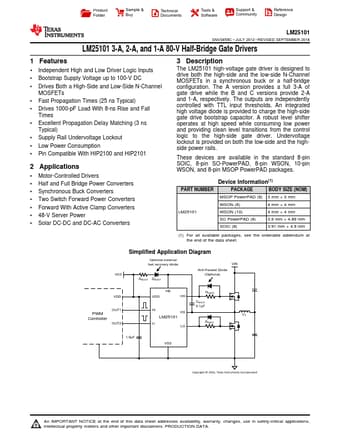

Additional preview pages of the LM25101B datasheet.

LM25101B Product details

Description

The LM25101 high-voltage gate driver is designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration.

Features

1 Independent High and Low Driver Logic Inputs.
Bootstrap Supply Voltage up to 100-V DC.
Drives Both a High-Side and Low-Side N-Channel MOSFETs.
Fast Propagation Times (25 ns Typical).
Drives 1000-pF Load With 8-ns Rise and Fall Times.
Excellent Propagation Delay Matching (3 ns Typical).
Supply Rail Undervoltage Lockout.
Low Power Consumption.
Pin Compatible With HIP2100 and HIP2101 2.
