LM25116 - Wide-Range Synchronous Buck Controller

Texas Instruments

The LM25116 by Texas Instruments is a Wide-Range Synchronous Buck Controller. Below is the official datasheet preview.

📥 Download Datasheet

LM25116 Wide-Range Synchronous Buck Controller by Texas Instruments - Datasheet Preview — Official preview page of the **LM25116** Wide-Range Synchronous Buck Controller datasheet (Texas Instruments).

Datasheet Details

Part number	LM25116
Manufacturer	Texas Instruments
File Size	1.86 MB
Description	Wide-Range Synchronous Buck Controller
Datasheet	LM25116-etcTI.pdf

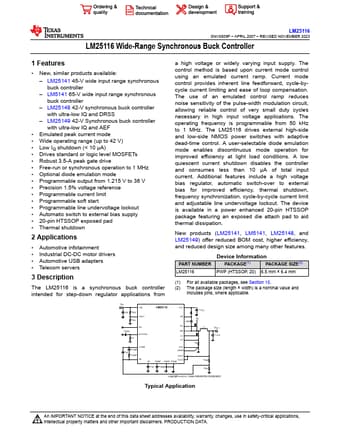

Additional preview pages of the LM25116 datasheet.

LM25116 Product details

Description

The LM25116 is a synchronous buck controller intended for step-down regulator applications from a high voltage or widely varying input supply.The control method is based upon current mode control using an emulated current ramp.Current mode control provides inherent line feedforward, cycle-bycycle current limiting and ease of loop compensation.The use of an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycle

Features

New, similar products available:.
LM25141 45-V wide input range synchronous buck controller.
LM5141 65-V wide input range synchronous buck controller.
LM25148 42-V synchronous buck controller with ultra-low IQ and DRSS.
LM25149 42-V Synchronous buck controller with ultra-low IQ and AEF.
Emulated peak current mode.
Wide operating range (up to 42 V).
Low IQ shutdown (< 10 µA).
Drives standard or logic level MOSFETs.
