LM2512 - Mobile Pixel Link Level 0 / 24-Bit RGB Display Interface Serializer

National Semiconductor

The LM2512 by National Semiconductor is a Mobile Pixel Link Level 0 / 24-Bit RGB Display Interface Serializer. Below is the official datasheet preview.

📥 Download Datasheet

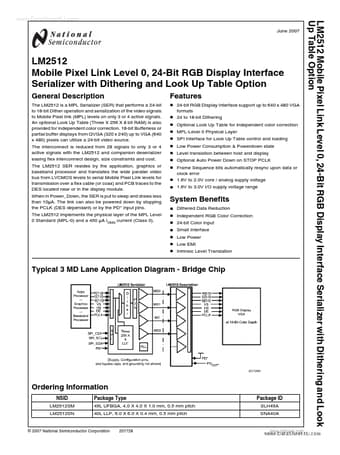

LM2512 Mobile Pixel Link Level 0 / 24-Bit RGB Display Interface Serializer by National Semiconductor - Datasheet Preview — Official preview page of the **LM2512** Mobile Pixel Link Level 0 / 24-Bit RGB Display Interface Serializer datasheet (National Semiconductor).

Datasheet Details

Part number	LM2512
Manufacturer	National Semiconductor
File Size	947.43 KB
Description	Mobile Pixel Link Level 0 / 24-Bit RGB Display Interface Serializer
Datasheet	LM2512_NationalSemiconductor.pdf
Additional preview pages of the LM2512 datasheet.

LM2512 Product details

Description

The LM2512 is a MPL Serializer (SER) that performs a 24-bit to 18-bit Dither operation and serialization of the video signals to Mobile Pixel link (MPL) levels on only 3 or 4 active signals.

Features

24-bit RGB Display Interface support up to 640 x 480 VGA formats 24 to 18-bit Dithering Optional Look Up Table for independent color correction MPL-Level 0 Physical Layer SPI Interface for Look Up Table control and loading Low Power Consumption & Powerdown state Level translation between host and display Optional Auto Power Down on STOP PCLK Frame Sequence bits automatically resync upon data or clock error.
1.6V to 2.0V core / analog supply voltage.
1.6V to 3.0V I/O supply voltag.
