LM25115 - Secondary Side Post Regulator Controller

Description

The LM25115 controller contains all of the

Features

  • 1.
  • 2 Self-synchronization to Main Channel Output.
  • Free-run Mode for Buck Regulation of DC Input.
  • Leading Edge Pulse Width Modulation.
  • Voltage-mode Control with Current Injection and Input Line Feed-forward.
  • Operates from AC or DC Input up to 42V.
  • Wide 4.5V to 30V Bias Supply Range.
  • Wide 0.75V to 13.5V Output Range.
  • Top and Bottom Gate Drivers Sink 2.5A Peak.
  • Adaptive Gate Driver Dead-time Control.
  • Wide Band.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM25115 Secondary Side Post Regulator Controller National Semiconductor
LM2512 Mobile Pixel Link Level 0 / 24-Bit RGB Display Interface Serializer National Semiconductor
LM250 ADJUSTABLE VOLTAGE REGULATORS STMicroelectronics
LM25005 STEP-DOWN SWITCHING REGULATOR National Semiconductor
LM25007 Step-Down Switching Regulator National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LM25115A Secondary Side Post Regulator/DC-DC Converter
LM25116 Wide-Range Synchronous Buck Controller
LM25117 Wide Input Range Synchronous Buck Controller
LM25117-Q1 Wide Input Range Synchronous Buck Controller
LM25118 Wide Voltage Range Buck-Boost Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

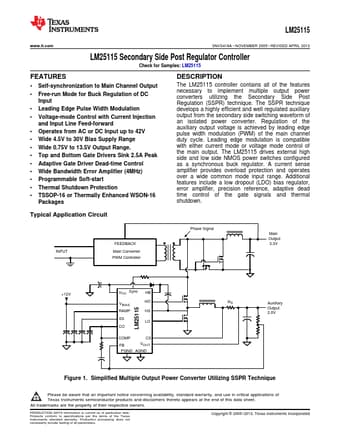

LM25115 www.ti.com SNVS418A – NOVEMBER 2005 – REVISED APRIL 2013 LM25115 Secondary Side Post Regulator Controller Check for Samples: LM25115 FEATURES 1 •2 Self-synchronization to Main Channel Output • Free-run Mode for Buck Regulation of DC Input • Leading Edge Pulse Width Modulation • Voltage-mode Control with Current Injection and Input Line Feed-forward • Operates from AC or DC Input up to 42V • Wide 4.5V to 30V Bias Supply Range • Wide 0.75V to 13.5V Output Range. • Top and Bottom Gate Drivers Sink 2.
