LM25005 - STEP-DOWN SWITCHING REGULATOR

National Semiconductor

📥 Download Datasheet

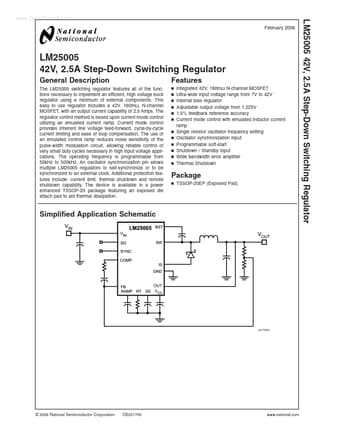

LM25005 Datasheet Preview — Preview of LM25005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM25005
Manufacturer	National Semiconductor
File Size	782.31 KB
Description	STEP-DOWN SWITCHING REGULATOR
Datasheet	LM25005_NationalSemiconductor.pdf

LM25005 Product details

Description

The LM25005 switching regulator

Features

all of the functions necessary to implement an efficient, high voltage buck regulator using a minimum of external components. This easy to use regulator includes a 42V, 160mΩ, N-channel MOSFET, with an output current capability of 2.5 Amps. The regulator control method is based upon current mode control utilizing an emulated current ramp. Current mode control provides inherent line voltage feed-forward, cycle-by-cycle current limiting and ease of loop compensation. The use of an emulated control.
