DS90UB914Q-Q1, DS90UB913Q-Q1 - DC-Balanced FPD-Link3 Serializer/Deserializer

Texas Instruments

The DS90UB914Q-Q1 by Texas Instruments is a DC-Balanced FPD-Link3 Serializer/Deserializer. Below is the official datasheet preview.

📥 Download Datasheet

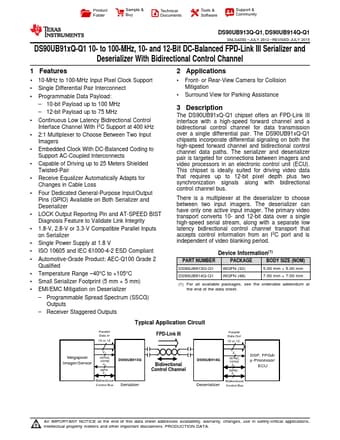

DS90UB914Q-Q1 DC-Balanced FPD-Link3 Serializer/Deserializer by Texas Instruments - Datasheet Preview — Official preview page of the **DS90UB914Q-Q1** DC-Balanced FPD-Link3 Serializer/Deserializer datasheet (Texas Instruments).

Datasheet Details

Part number	DS90UB914Q-Q1, DS90UB913Q-Q1
Manufacturer	Texas Instruments
File Size	1.39 MB
Description	DC-Balanced FPD-Link3 Serializer/Deserializer
Datasheet	DS90UB913Q-Q1-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: DS90UB914Q-Q1, DS90UB913Q-Q1. Please refer to the document for exact specifications by model.
Additional preview pages of the DS90UB914Q-Q1 datasheet.

DS90UB914Q-Q1 Product details

Description

The DS90UB91xQ-Q1 chipset offers an FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair.

Features

1 10-MHz to 100-MHz Input Pixel Clock Support.
Single Differential Pair Interconnect.
Programmable Data Payload:.
10-bit Payload up to 100 MHz.
12-bit Payload up to 75 MHz.
Continuous Low Latency Bidirectional Control Interface Channel With I2C Support at 400 kHz.
2:1 Multiplexer to Choose Between Two Input Imagers.
Embedded Clock With DC-Balanced Coding to Support AC-Coupled Interconnects.
Capable of Driving up to.
