DS90UB902Q, DS90UB901Q - 14-Bit Color FPD-Link3 Serializer/Deserializer

Texas Instruments

The DS90UB902Q by Texas Instruments is a 14-Bit Color FPD-Link3 Serializer/Deserializer. Below is the official datasheet preview.

📥 Download Datasheet

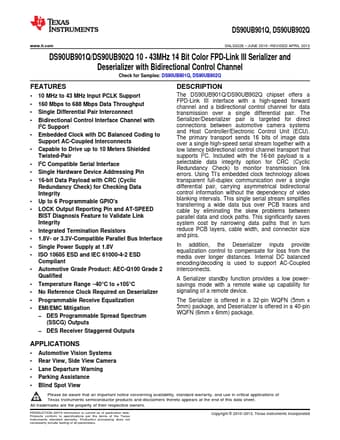

DS90UB902Q 14-Bit Color FPD-Link3 Serializer/Deserializer by Texas Instruments - Datasheet Preview — Official preview page of the **DS90UB902Q** 14-Bit Color FPD-Link3 Serializer/Deserializer datasheet (Texas Instruments).

Datasheet Details

Part number	DS90UB902Q, DS90UB901Q
Manufacturer	Texas Instruments
File Size	1.44 MB
Description	14-Bit Color FPD-Link3 Serializer/Deserializer
Datasheet	DS90UB901Q-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: DS90UB902Q, DS90UB901Q. Please refer to the document for exact specifications by model.
Additional preview pages of the DS90UB902Q datasheet.

DS90UB902Q Product details

Description

The DS90UB901Q/DS90UB902Q chipset offers a FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair.

Features

1.
2 10 MHz to 43 MHz Input PCLK Support.
160 Mbps to 688 Mbps Data Throughput.
Single Differential Pair Interconnect.
Bidirectional Control Interface Channel with I2C Support.
Embedded Clock with DC Balanced Coding to Support AC-Coupled Interconnects.
Capable to Drive up to 10 Meters Shielded Twisted-Pair.
I2C Compatible Serial Interface.
Single Hardware Device Addressing Pin.
16-bit Data Payload with CRC (Cyclic Re.
