DS90UB903Q - 18-Bit Color FPD-Link3 Serializer/Deserializer

Texas Instruments

The DS90UB903Q by Texas Instruments is a 18-Bit Color FPD-Link3 Serializer/Deserializer. Below is the official datasheet preview.

📥 Download Datasheet

DS90UB903Q 18-Bit Color FPD-Link3 Serializer/Deserializer by Texas Instruments - Datasheet Preview — Official preview page of the **DS90UB903Q** 18-Bit Color FPD-Link3 Serializer/Deserializer datasheet (Texas Instruments).

Datasheet Details

Part number	DS90UB903Q
Manufacturer	Texas Instruments
File Size	1.24 MB
Description	18-Bit Color FPD-Link3 Serializer/Deserializer
Datasheet	DS90UB903Q-etcTI.pdf

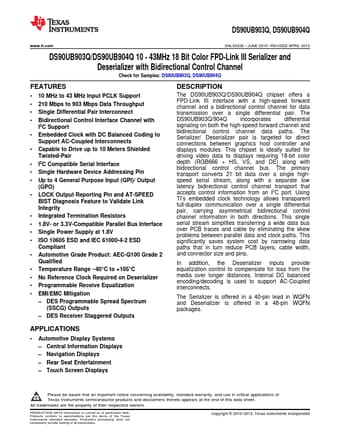

Additional preview pages of the DS90UB903Q datasheet.

DS90UB903Q Product details

Description

The DS90UB903Q/DS90UB904Q chipset offers a FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair.

Features

1.
2 10 MHz to 43 MHz Input PCLK Support.
210 Mbps to 903 Mbps Data Throughput.
Single Differential Pair Interconnect.
Bidirectional Control Interface Channel with I2C Support.
Embedded Clock with DC Balanced Coding to Support AC-Coupled Interconnects.
Capable to Drive up to 10 Meters Shielded Twisted-Pair.
I2C Compatible Serial Interface.
Single Hardware Device Addressing Pin.
Up to 4 General Purpose Input (GPI)/ Ou.
