DS90UR906Q, DS90UR905Q - 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer

National Semiconductor

The DS90UR906Q by National Semiconductor is a 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer. Below is the official datasheet preview.

📥 Download Datasheet

DS90UR906Q 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer by National Semiconductor - Datasheet Preview — Official preview page of the **DS90UR906Q** 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer datasheet (National Semiconductor).

Datasheet Details

Part number	DS90UR906Q, DS90UR905Q
Manufacturer	National Semiconductor
File Size	1.19 MB
Description	5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer
Datasheet	DS90UR905Q_NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DS90UR906Q, DS90UR905Q. Please refer to the document for exact specifications by model.

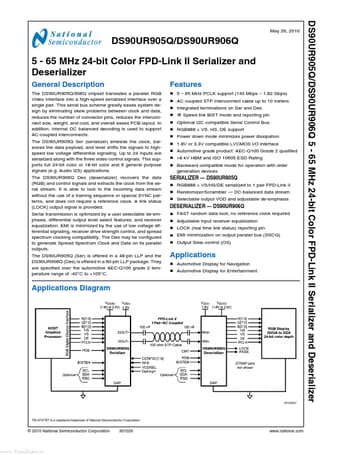

Additional preview pages of the DS90UR906Q datasheet.

DS90UR906Q Product details

Description

The DS90UR905Q/906Q chipset translates a parallel RGB Video Interface into a high-speed serialized interface over a single pair.

Features

and receiver equalization. EMI is minimized by the use of low voltage differential signaling, receiver drive strength control, and spread spectrum clocking compatibility. The Des may be configured to generate Spread Spectrum Clock and Data on its parallel outputs. The DS90UR905Q (Ser) is offered in a 48-pin LLP and the DS90UR906Q (Des) is offered in a 60-pin LLP package. They are specified over the automotive AEC-Q100 grade 2 temperature range of -40°C to +105°C. Features.
