DS90UR124Q - 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer

National Semiconductor

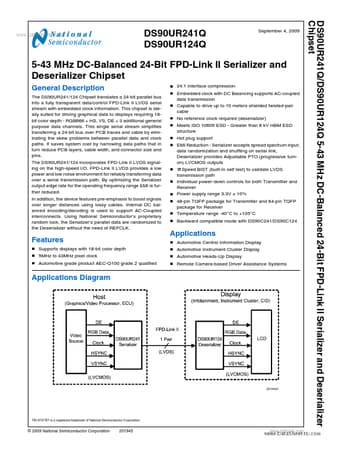

The DS90UR124Q by National Semiconductor is a 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer. Below is the official datasheet preview.

📥 Download Datasheet

DS90UR124Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer by National Semiconductor - Datasheet Preview — Official preview page of the **DS90UR124Q** 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer datasheet (National Semiconductor).

Datasheet Details

Part number	DS90UR124Q
Manufacturer	National Semiconductor
File Size	1.13 MB
Description	5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer
Datasheet	DS90UR124Q_NationalSemiconductor.pdf
Additional preview pages of the DS90UR124Q datasheet.

DS90UR124Q Product details

Description

The DS90UR241/124 Chipset translates a 24-bit parallel bus into a fully transparent data/control FPD-Link II LVDS serial stream with embedded clock information.

Features

pre-emphasis to boost signals over longer distances using lossy cables. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects. Using National Semiconductor’s proprietary random lock, the Serializer’s parallel data are randomized to the Deserializer without the need of REFCLK.
24:1 interface compression.
Embedded clock with DC Balancing supports AC-coupled data transmission.
Capable to drive up to 10 meters shielded twisted-pair.
