DS90UR124-Q1 - 5-MHz to 43-MHz DC-Balanced 24-Bit FPD-Link2 Serializer/Deserializer

Description

The DS90URxxx-Q1 chipset translates a 24-bit parallel bus into a fully transparent data/control FPDLink II LVDS serial stream with embedded clock information.

Features

  • 1 Supports Displays With 18-Bit Color Depth.
  • 5-MHz to 43-MHz Pixel Clock.
  • Automotive-Grade Product AEC-Q100 Grade 2 Qualified.
  • 24:1 Interface Compression.
  • Embedded Clock With DC Balancing Supports AC-Coupled Data Transmission.
  • Capable to Drive up to 10 Meters Shielded Twisted-Pair Cable.
  • No Reference Clock Required (Deserializer).
  • Meets ISO 10605 ESD.
  • Greater than 8 kV HBM ESD Structure.
  • Hot Plug Support.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS90UR124 DC-Balanced 24-Bit LVDS Serializer/Deserializer National Semiconductor
DS90UR124Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer National Semiconductor
DS90UR241 DC-Balanced 24-Bit LVDS Serializer/Deserializer National Semiconductor
DS90UR241Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer National Semiconductor
DS90UR905Q 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
DS90UR241-Q1 5-MHz to 43-MHz DC-Balanced 24-Bit FPD-Link2 Serializer/Deserializer
DS90UR903Q-Q1 18-Bit Color FPD-Link2 Serializer/Deserializer
DS90UR904Q-Q1 18-Bit Color FPD-Link2 Serializer/Deserializer
DS90UR905Q-Q1 24-bit Color FPD-Link2 Serializer/Deserializer
DS90UR906Q-Q1 24-bit Color FPD-Link2 Serializer/Deserializer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

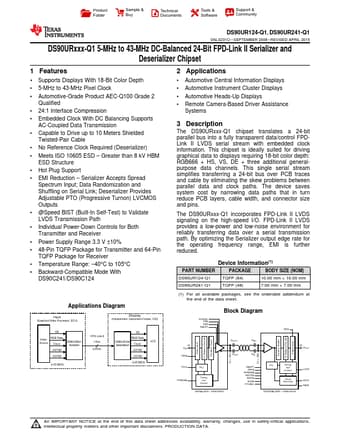

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DS90UR124-Q1, DS90UR241-Q1 SNLS231O – SEPTEMBER 2006 – REVISED APRIL 2015 DS90URxxx-Q1 5-MHz to 43-MHz DC-Balanced 24-Bit FPD-Link II Serializer and Deserializer Chipset 1 Features •1 Supports Displays With 18-Bit Color Depth • 5-MHz to 43-MHz Pixel Clock • Automotive-Grade Product AEC-Q100 Grade 2 Qualified • 24:1 Interface Compression • Embedded Clock With DC Balancing Supports AC-Coupled Data Transmission • Capable to Drive up to 10 Meters Shielded Twisted-Pair Cable • No Reference Clock Required (Deserializer) • Meets ISO 10605 ESD – Greater than 8 kV HBM ESD Structure • Hot Plug Support • EMI Reduction – Serializer Accepts Spread Spectrum Input; Data Randomization and Shuffling on Serial Link; D
