DS90LT012A - 3V LVDS Single CMOS Differential Line Receiver

Texas Instruments

The DS90LT012A by Texas Instruments is a 3V LVDS Single CMOS Differential Line Receiver. Below is the official datasheet preview.

📥 Download Datasheet

DS90LT012A 3V LVDS Single CMOS Differential Line Receiver by Texas Instruments - Datasheet Preview — Official preview page of the **DS90LT012A** 3V LVDS Single CMOS Differential Line Receiver datasheet (Texas Instruments).

Datasheet Details

Part number	DS90LT012A
Manufacturer	Texas Instruments
File Size	0.98 MB
Description	3V LVDS Single CMOS Differential Line Receiver
Datasheet	DS90LT012A-etcTI.pdf

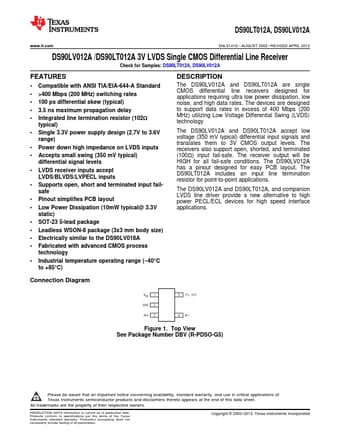

Additional preview pages of the DS90LT012A datasheet.

DS90LT012A Product details

Description

The DS90LV012A and DS90LT012A are single CMOS differential line receivers designed for applications requiring ultra low power dissipation, low noise, and high data rates.

Features

1.
2 Compatible with ANSI TIA/EIA-644-A Standard.
>400 Mbps (200 MHz) switching rates.
100 ps differential skew (typical).
3.5 ns maximum propagation delay.
Integrated line termination resistor (102Ω typical).
Single 3.3V power supply design (2.7V to 3.6V range).
Power down high impedance on LVDS inputs.
Accepts small swing (350 mV typical) differential signal levels.
LVDS receiver inputs accept LVDS/BLVDS/LVPECL inp.
