ZL30145 SyncE (10 GbE) SONET/SDH Rate Conversion And Jitter Attenuator PLL

ZL30145 Description

www.DataSheet4U.com ZL30145 SyncE (10 GbE) SONET/SDH Rate Conversion and Jitter Attenuator PLL Short Form Data Sheet February 2009 .

ZL30145 Features

* Can be used in systems to support the requirements of ITU-T G.8262 for synchronous Ethernet Equipment slave Clocks (EEC option 1 and 2) Meets jitter generation requirements of Telcordia GR-253-CORE for OC-192, OC-48, OC-12 and OC-3 rates Meets jitter generation requirements of ITU-T G.813

ZL30145 Applications

* ITU-T G.8262 Line Cards which support 1 GbE and 10 GbE interfaces SONET line cards up to OC-192 SDH line cards up to STM-64
* osci osco ref /N ref DPLL SONET/SDH/ Ethernet APLL diff apll_clk lock hold I2C/SPI JTAG Figure 1 - Si

📥 Download Datasheet

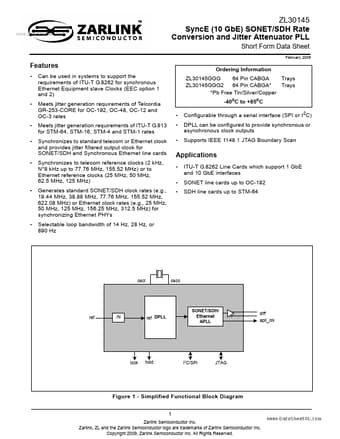

Preview of ZL30145 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZL30145
Manufacturer
Zarlink Semiconductor
File Size
148.38 KB
Datasheet
ZL30145_ZarlinkSemiconductor.pdf
Description
SyncE (10 GbE) SONET/SDH Rate Conversion And Jitter Attenuator PLL
