XP65SA430ADR - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA430ADR Description

XP65SA430ADR Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement ▼ RoH.
XP65SA430AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA430ADR Applications

* The TO-262 package is widely preferred for commercial-industrial through-hole applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3,4 650V 0.438Ω 10A G D S TO-262(R) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rat

📥 Download Datasheet

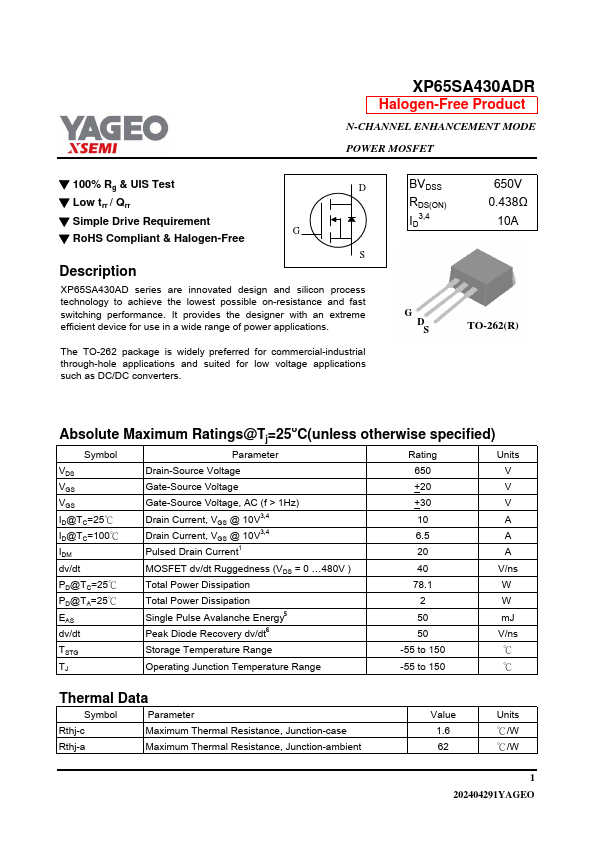

Preview of XP65SA430ADR PDF

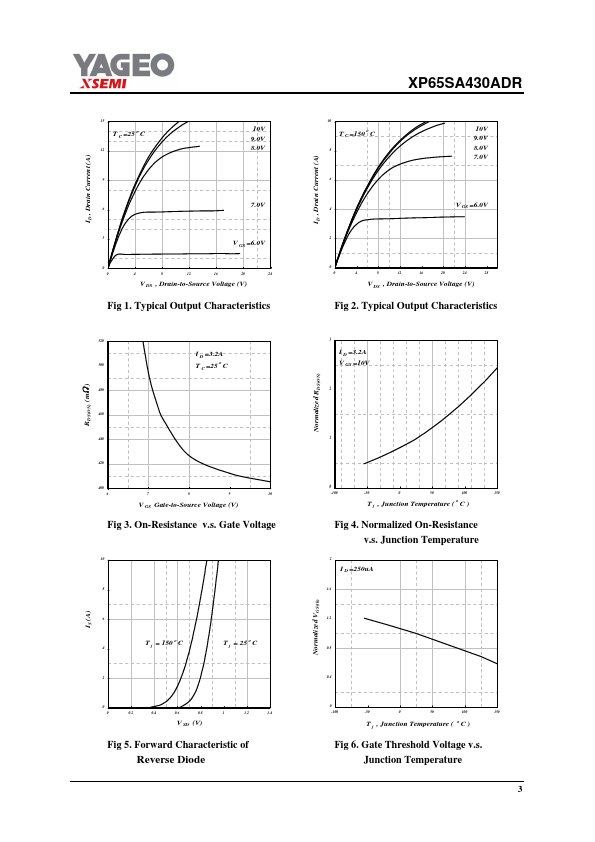

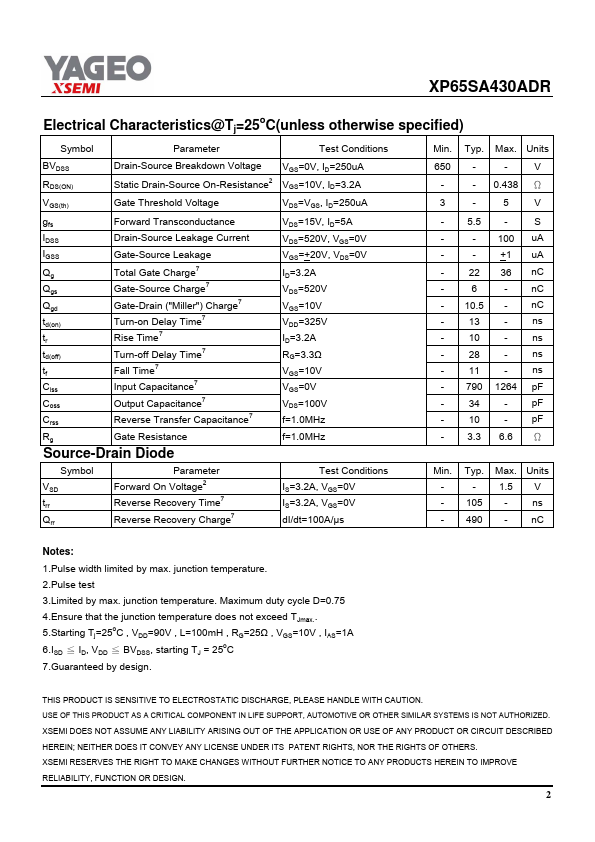

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA430ADR
Manufacturer
YAGEO
File Size
192.00 KB
Datasheet
XP65SA430ADR-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
