XP65SA420DH - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA420DH Description

XP65SA420DH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SA420D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA420DH Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 650V 0.42Ω 10A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin

📥 Download Datasheet

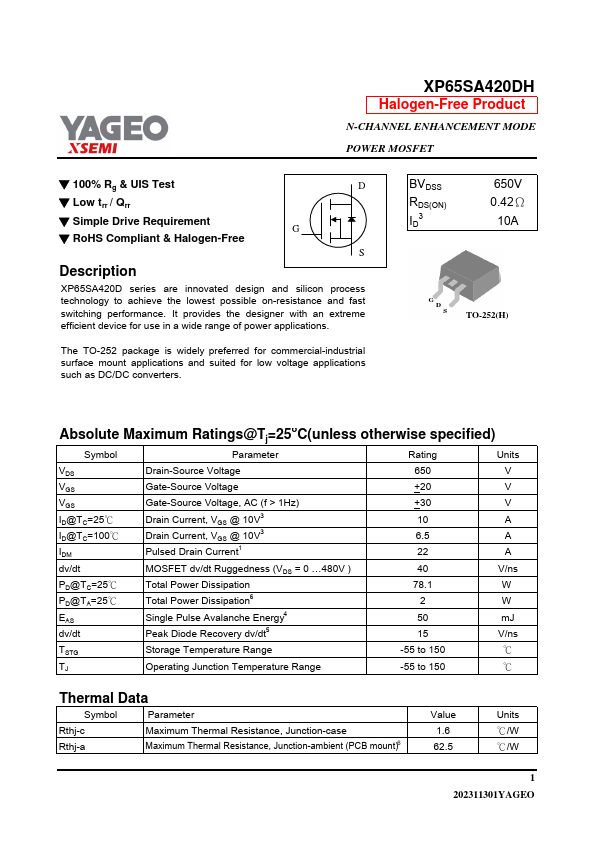

Preview of XP65SA420DH PDF

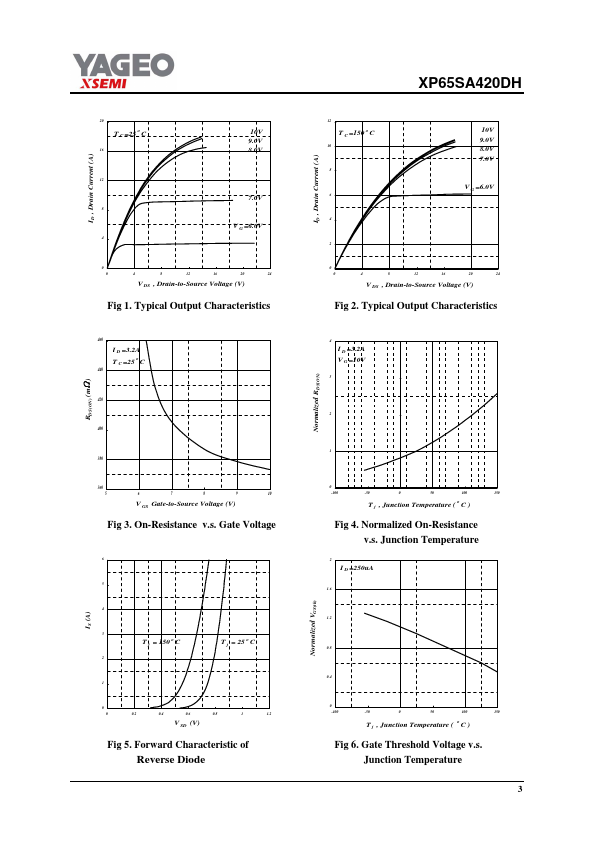

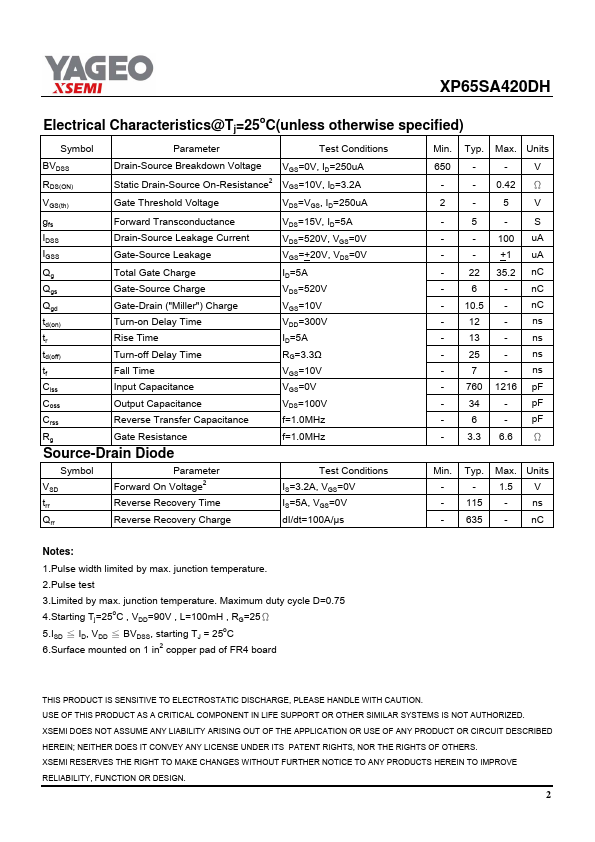

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA420DH
Manufacturer
YAGEO
File Size
215.02 KB
Datasheet
XP65SA420DH-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
