XP65SA420DR - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA420DR Description

XP65SA420DR Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SA420D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA420DR Applications

* The TO-262 package is widely preferred for commercial-industrial through-hole applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3,4 650V 0.42Ω 10A G D S TO-262(R) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rati

📥 Download Datasheet

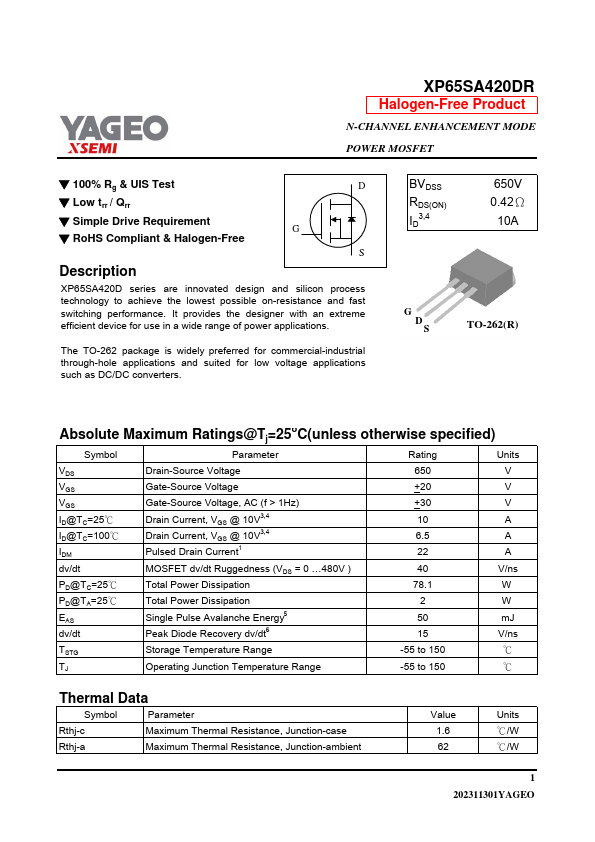

Preview of XP65SA420DR PDF

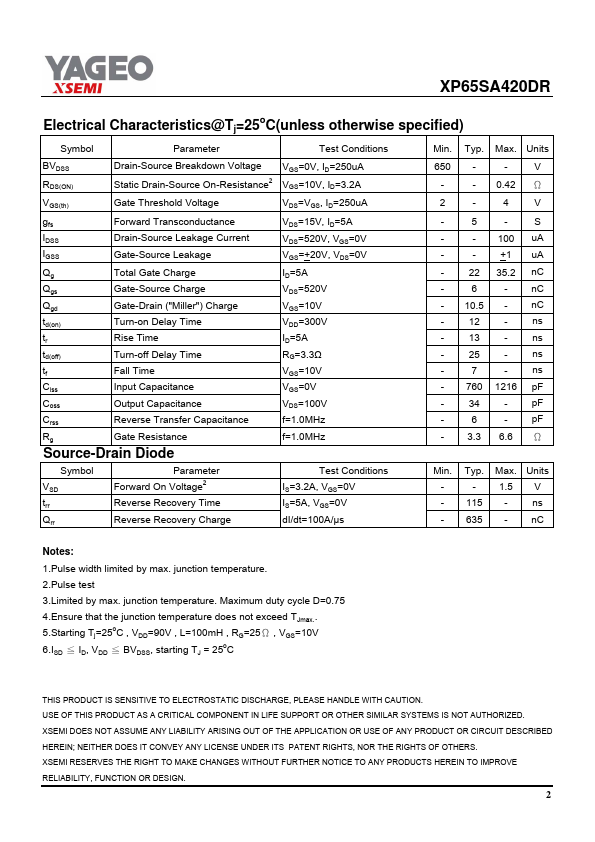

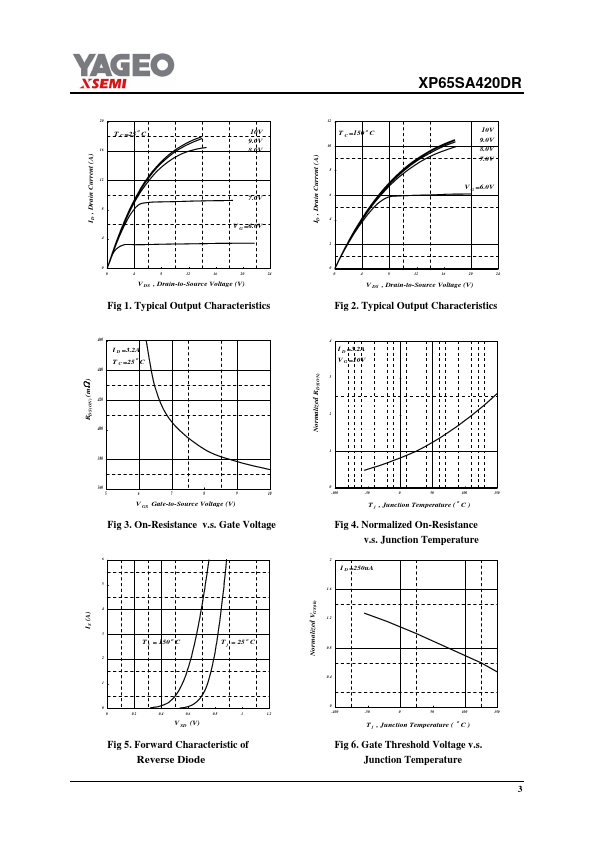

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA420DR
Manufacturer
YAGEO
File Size
190.08 KB
Datasheet
XP65SA420DR-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
