XP65SA074FWL - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA074FWL Description

XP65SA074FWL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Ultra-Fast Body Diode ▼ Simple Drive Requiremen.
XP65SA074F series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA074FWL Applications

* The TO-247 package is widely preferred for commercial-industrial applications. The device is suited for switch mode power supplies, DC-AC converters and high current high speed switching circuits. BVDSS RDS(ON) ID 650V 74mΩ 37.5A TO-247 (WL) S D G . Absolute Maximum Ratings@Tj=25oC(unless othe

📥 Download Datasheet

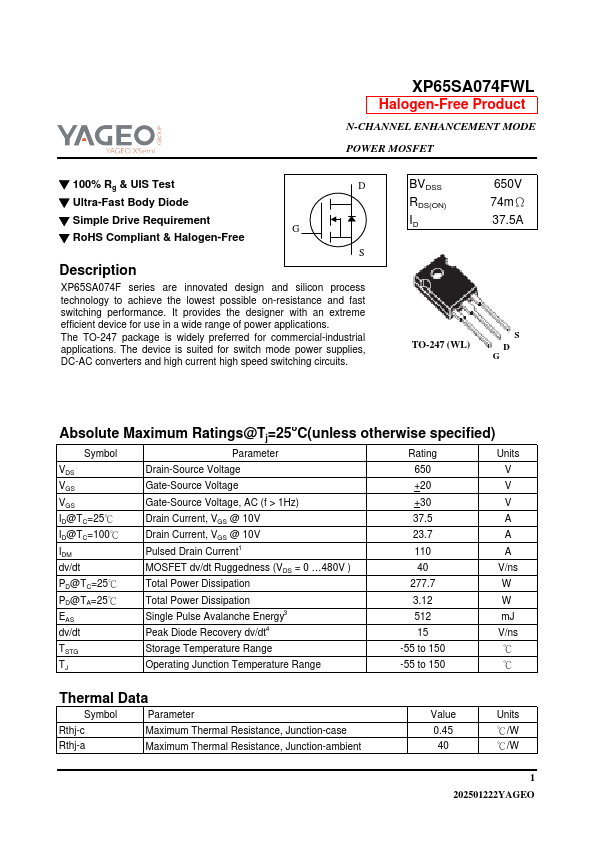

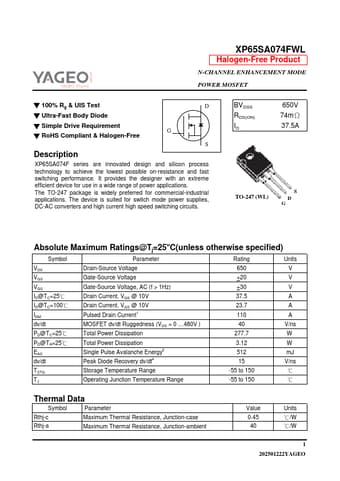

Preview of XP65SA074FWL PDF

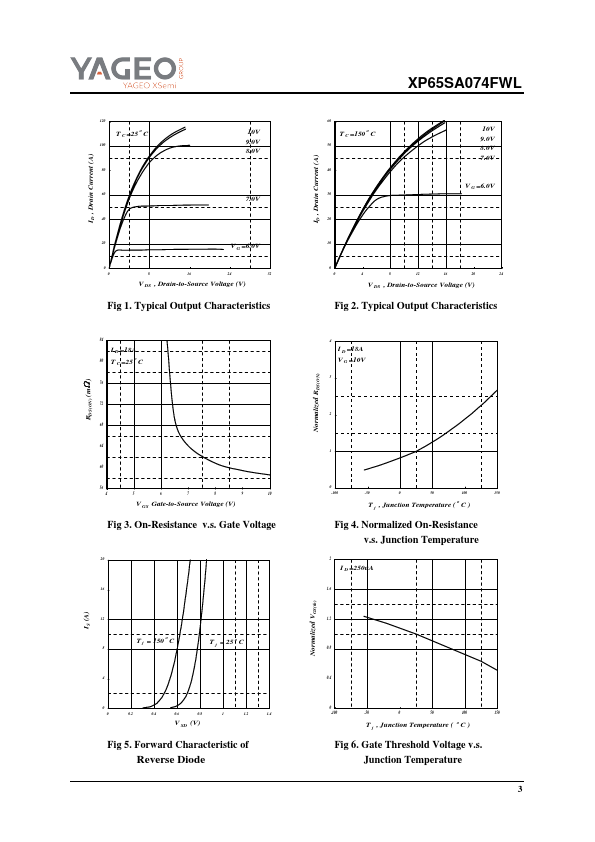

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA074FWL
Manufacturer
YAGEO
File Size
698.04 KB
Datasheet
XP65SA074FWL-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
