XP65SA145DDT8 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA145DDT8 Description

XP65SA145DDT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test Pin 5 Drain ▼ Low trr / Qrr ▼ Simple Drive Require.
Pin 3,4 Power Source XP65SA145D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast swi.

XP65SA145DDT8 Applications

* The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. BVDSS RDS(ON) ID3,4 650V 145mΩ 24.8A Top View 5 12 34 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin

📥 Download Datasheet

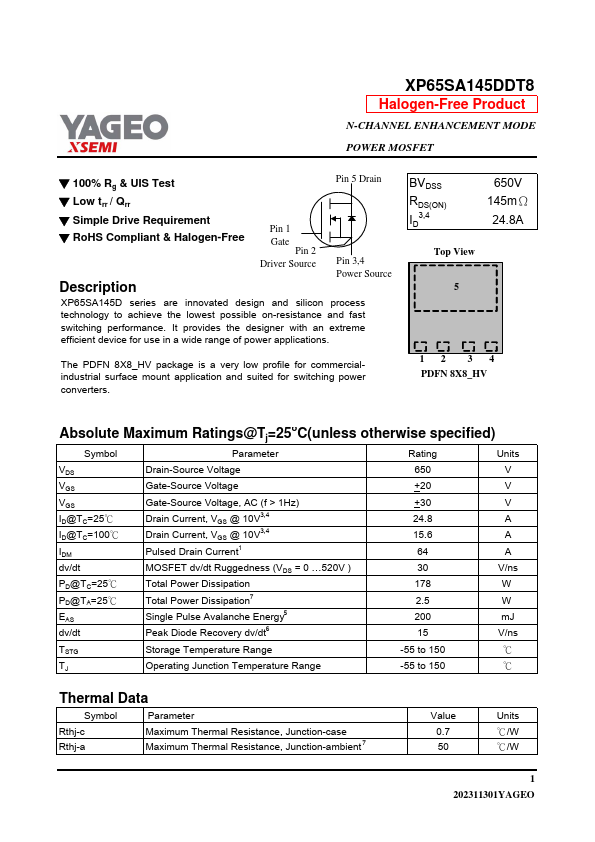

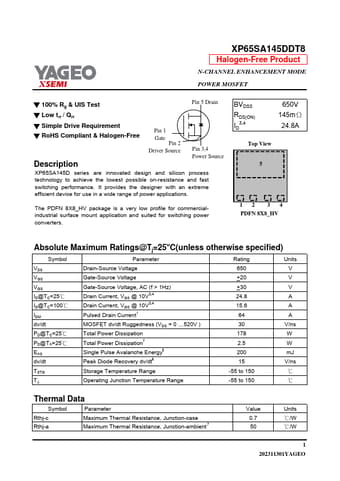

Preview of XP65SA145DDT8 PDF

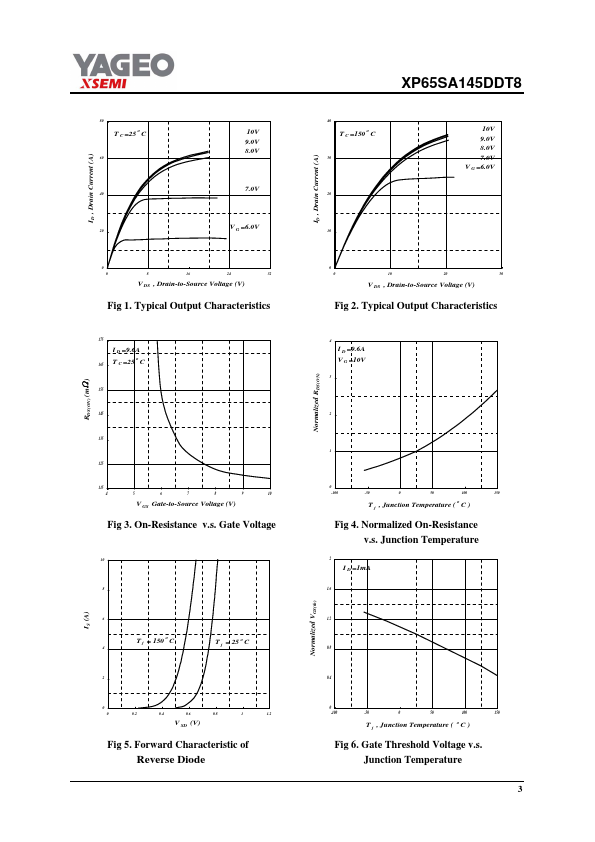

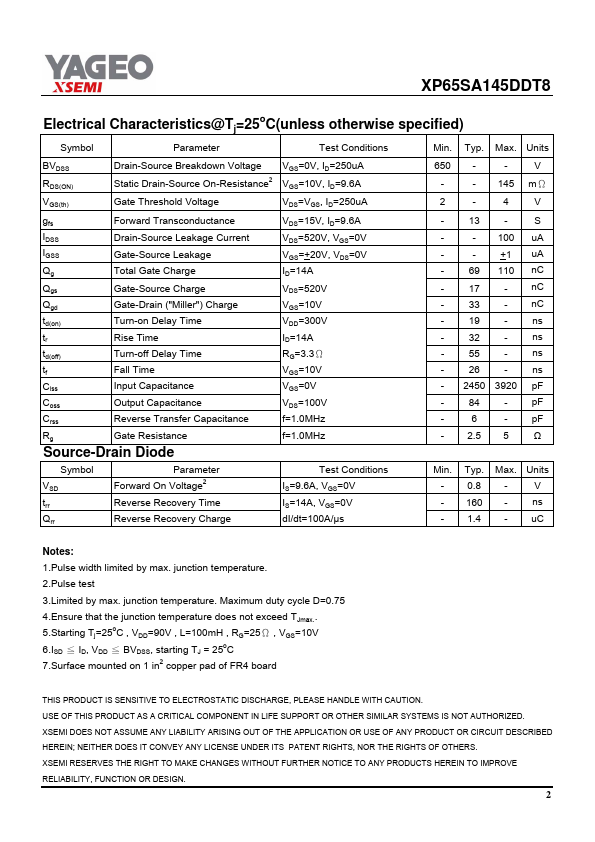

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA145DDT8
Manufacturer
YAGEO
File Size
205.07 KB
Datasheet
XP65SA145DDT8-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
