XP65SA130DP - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA130DP Description

XP65SA130DP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SA130D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA130DP Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID3,4 G D S 650V 130mΩ 26.2A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise spe

📥 Download Datasheet

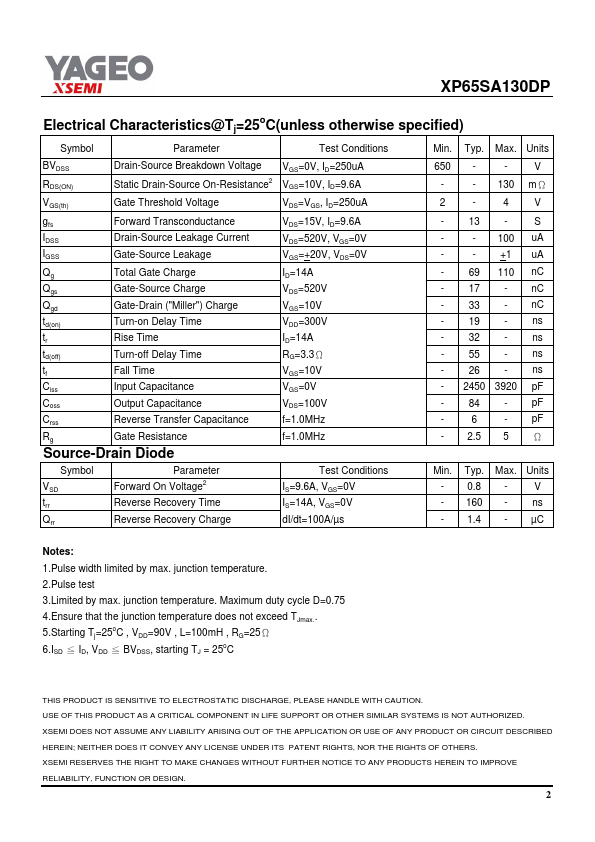

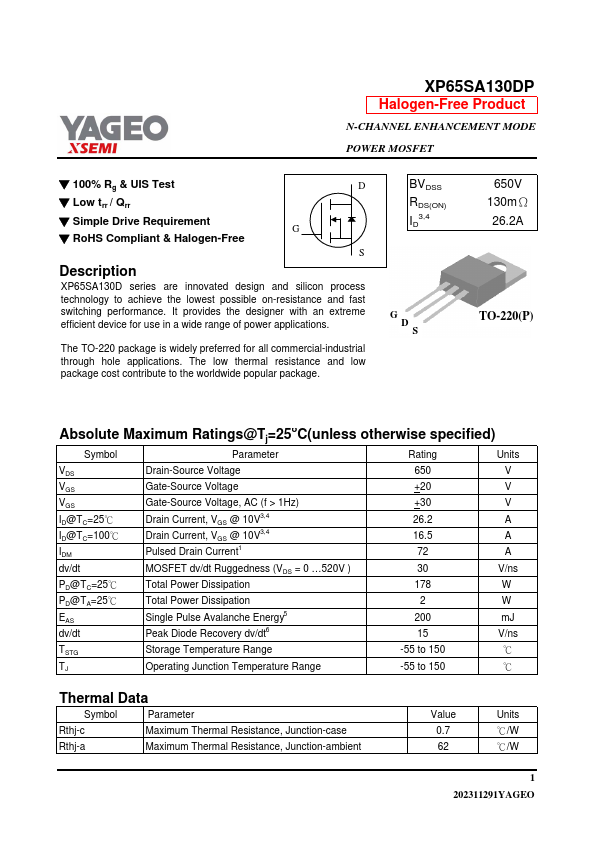

Preview of XP65SA130DP PDF

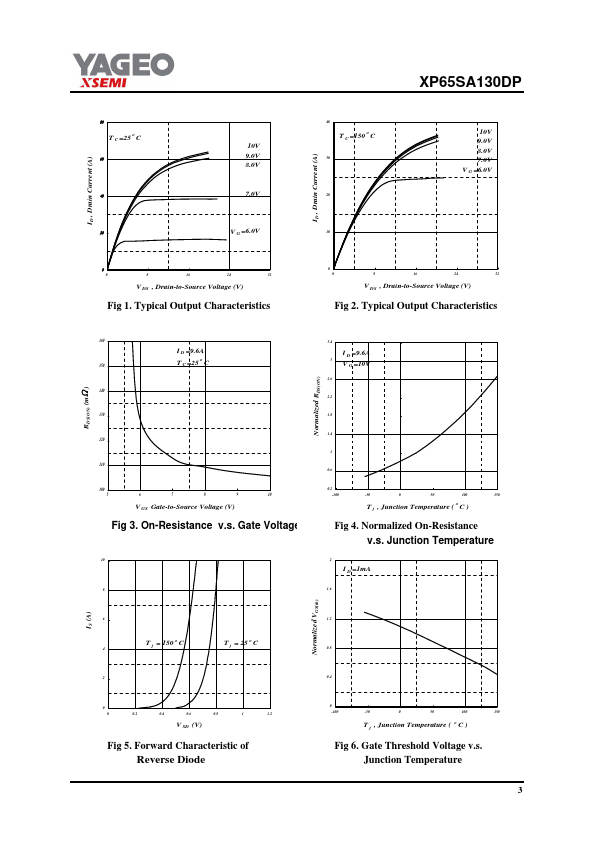

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA130DP
Manufacturer
YAGEO
File Size
154.06 KB
Datasheet
XP65SA130DP-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
