XP65SA190DIN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA190DIN Description

XP65SA190DIN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ Ro.
XP65SA190D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA190DIN Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,4 650V 0.19Ω 20A G DS TO-220CFM-NL(IN) Absol

📥 Download Datasheet

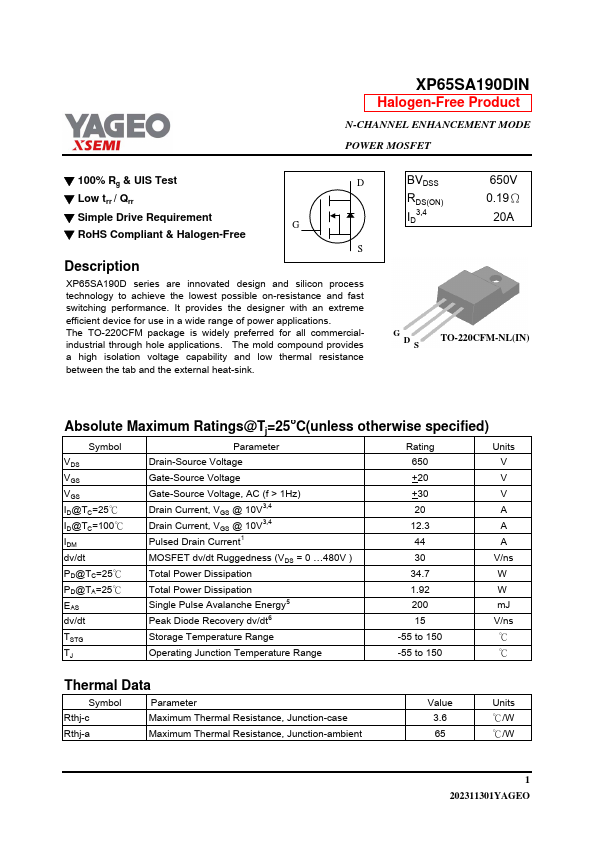

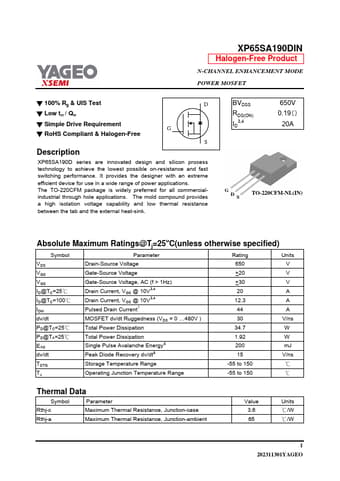

Preview of XP65SA190DIN PDF

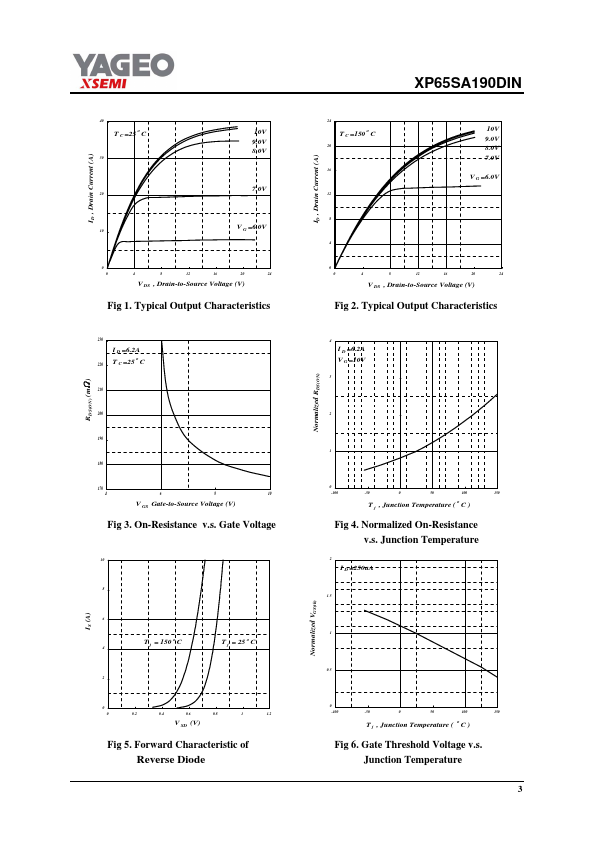

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA190DIN
Manufacturer
YAGEO
File Size
239.44 KB
Datasheet
XP65SA190DIN-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
