XP65SA190DP - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA190DP Description

XP65SA190DP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SA190D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65SA190DP Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID3,4 G D S 650V 0.19Ω 20A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specif

📥 Download Datasheet

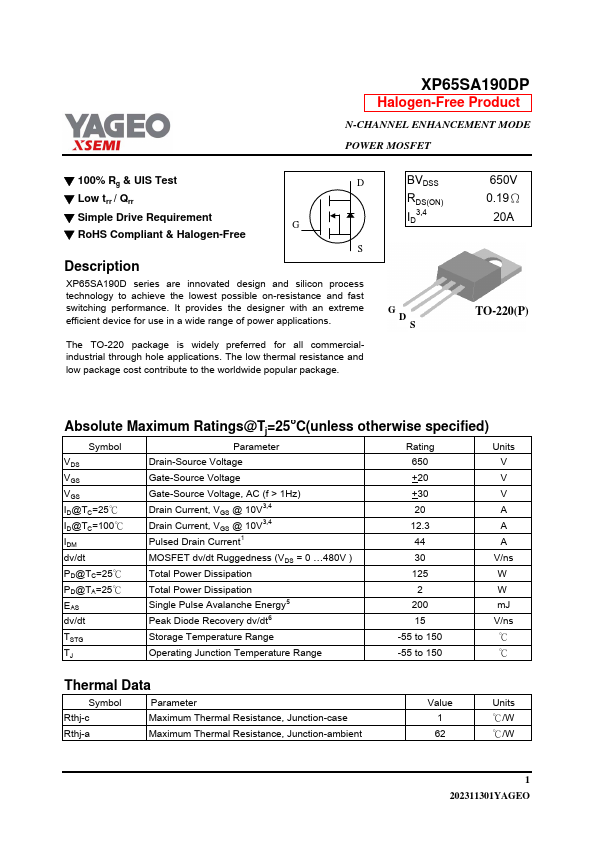

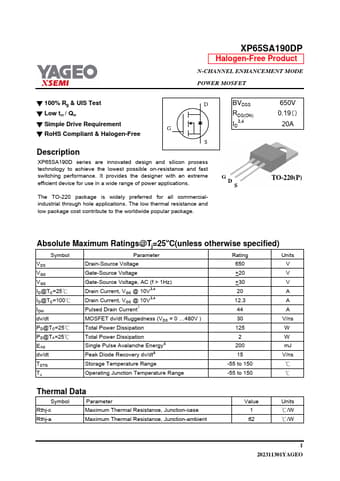

Preview of XP65SA190DP PDF

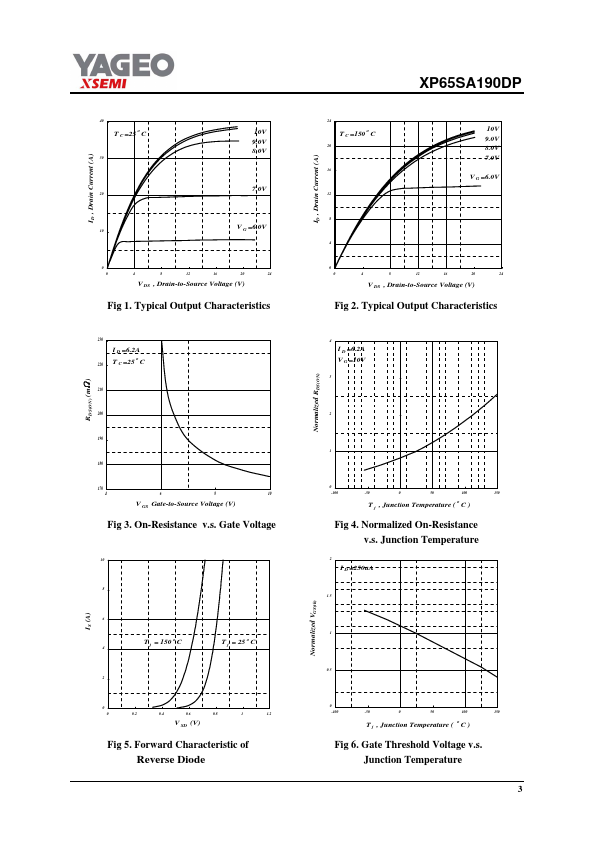

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65SA190DP
Manufacturer
YAGEO
File Size
189.44 KB
Datasheet
XP65SA190DP-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
