XP10C036LMT - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

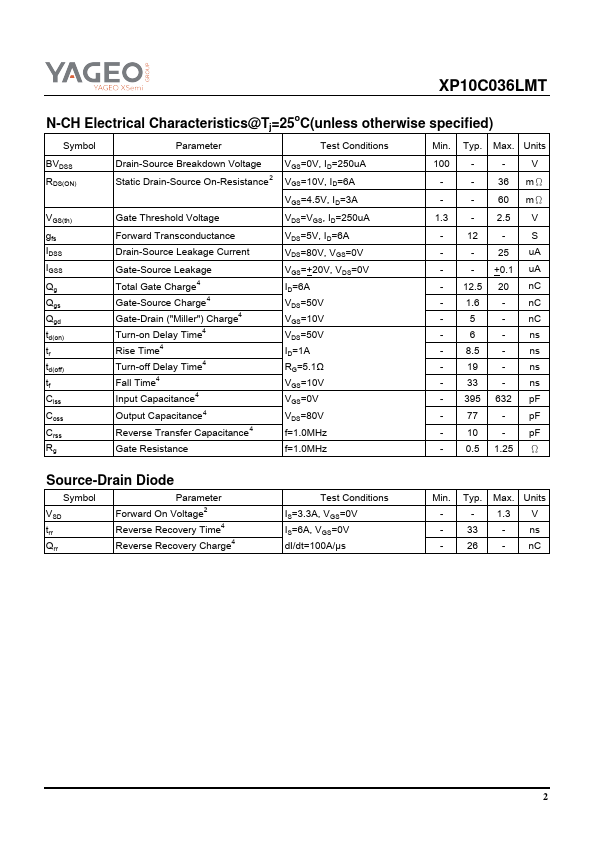

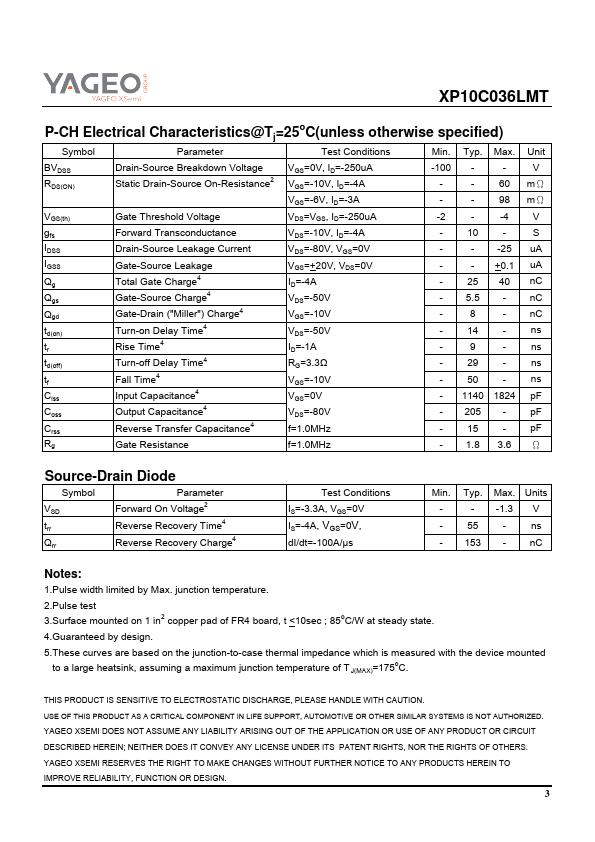

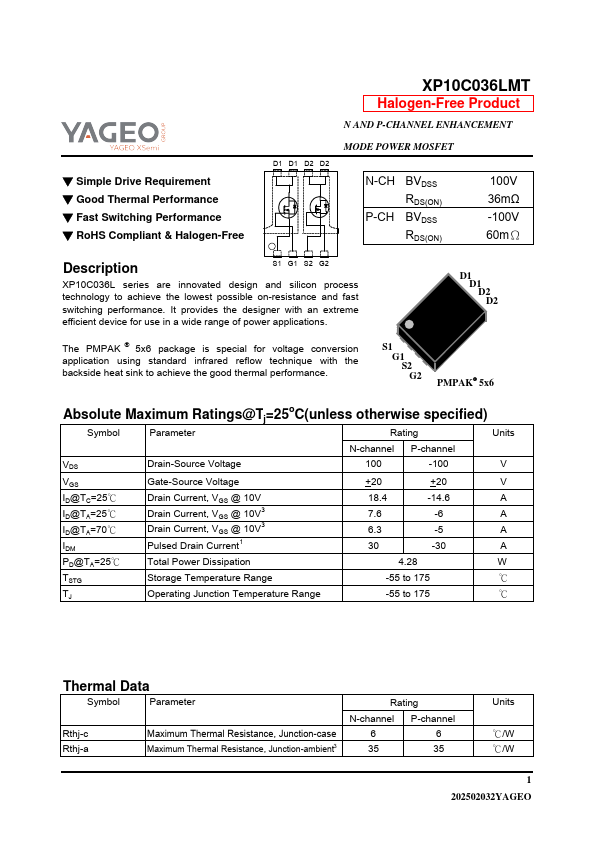

Preview of XP10C036LMT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number XP10C036LMT
Manufacturer YAGEO
File Size 742.92 KB
Description N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet XP10C036LMT-YAGEO.pdf

XP10C036LMT Product details

Description

S1 G1 S2 G2 XP10C036L series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.The PMPAK ® 5x6 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance.D1 D1 D2 D2 S1 G1 S2 G2 PMPAK® 5x6 Absolute Maximu
