XP1003 - GaAs MMIC Power Amplifier

Mimix Broadband

📥 Download Datasheet

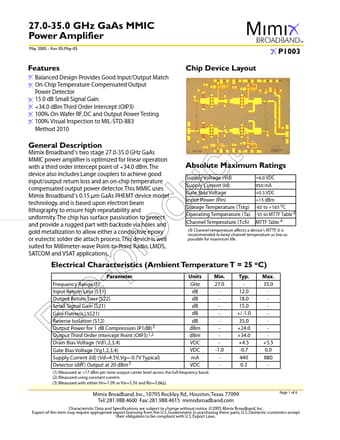

XP1003 Datasheet Preview — Preview of XP1003 PDF

Datasheet Details

Part number	XP1003
Manufacturer	Mimix Broadband
File Size	1.59 MB
Description	GaAs MMIC Power Amplifier
Datasheet	XP1003_MimixBroadband.pdf

XP1003 Product details

Description

uc Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage Input Power (Pin) Storage Temperature (Tstg) Operating Temperature (Ta) Channel Temperature (Tch) od (4) Channel temperature affects a device's MTTF.It is recommended to keep channel temperature as low as possible for maximum life.Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099 Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com Characteristic Data and Specifications are subject to cha

Features

Balanced Design Provides Good Input/Output Match On-Chip Temperature Compensated Output Power Detector 15.0 dB Small Signal Gain +34.0 dBm Third Order Intercept (OIP3) 100% On-Wafer RF, DC and Output Power Testing 100% Visual Inspection to MIL-STD-883 Method 2010 Electrical Characteristics (Ambient Temperature T = 25 oC) Parameter Frequency Range (f ) Input Return Loss (S11) Output Return Loss (S22) Small Signal Gain (S21) Gain Flatness (∆S21) Reverse Isolation (S12) Output Power for 1 dB Compr.
